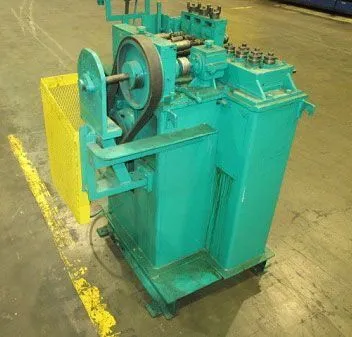

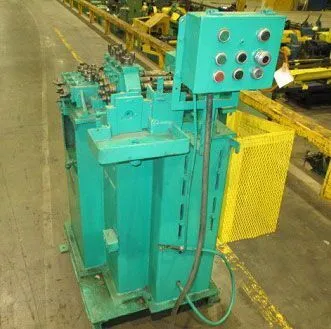

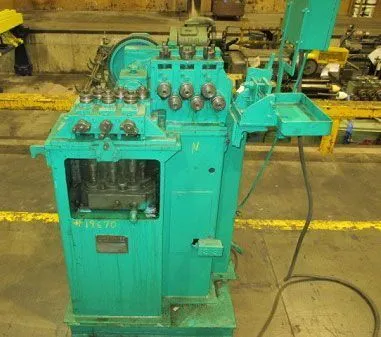

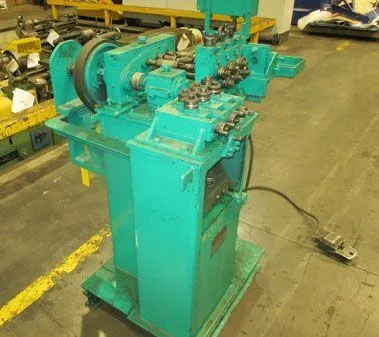

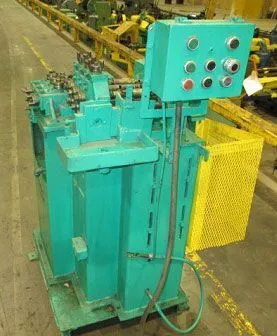

3/8" (9.5mm) TORRINGTON MODEL 1819 12 ROLL 2 PLANE STRAIGHTENER (12302)
MACHINE # 12302
SPECIFICATIONS:
CAPACITY: TUBE .......... .0625" - .3125" WITH .040" WALL
ROD ........... .125" HEX OR SQUARE
ROLL SIZE ............... 1-1/2" DIA. x 1" FACE
SPEED ................... 159 - 635 FPM
EQUIPPED WITH:
ROLLS: 12-PLANE
ALL ROLLS DRIVEN
OPERATORS CONTROLS - PUSH BUTTONS
FOOT SWITCH
MACHINE TOOLED FOR 3/16" DIA.
MOTOR DRIVE: 3 HP EST. AC MOTOR
V.S. PULLEY DRIVE
OVERALL DIMENSIONS: 40" LR x 40" FB x 58" H
WEIGHT: 1000# APPROX.
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE TO VERIFICATION BY PURCHASER**
