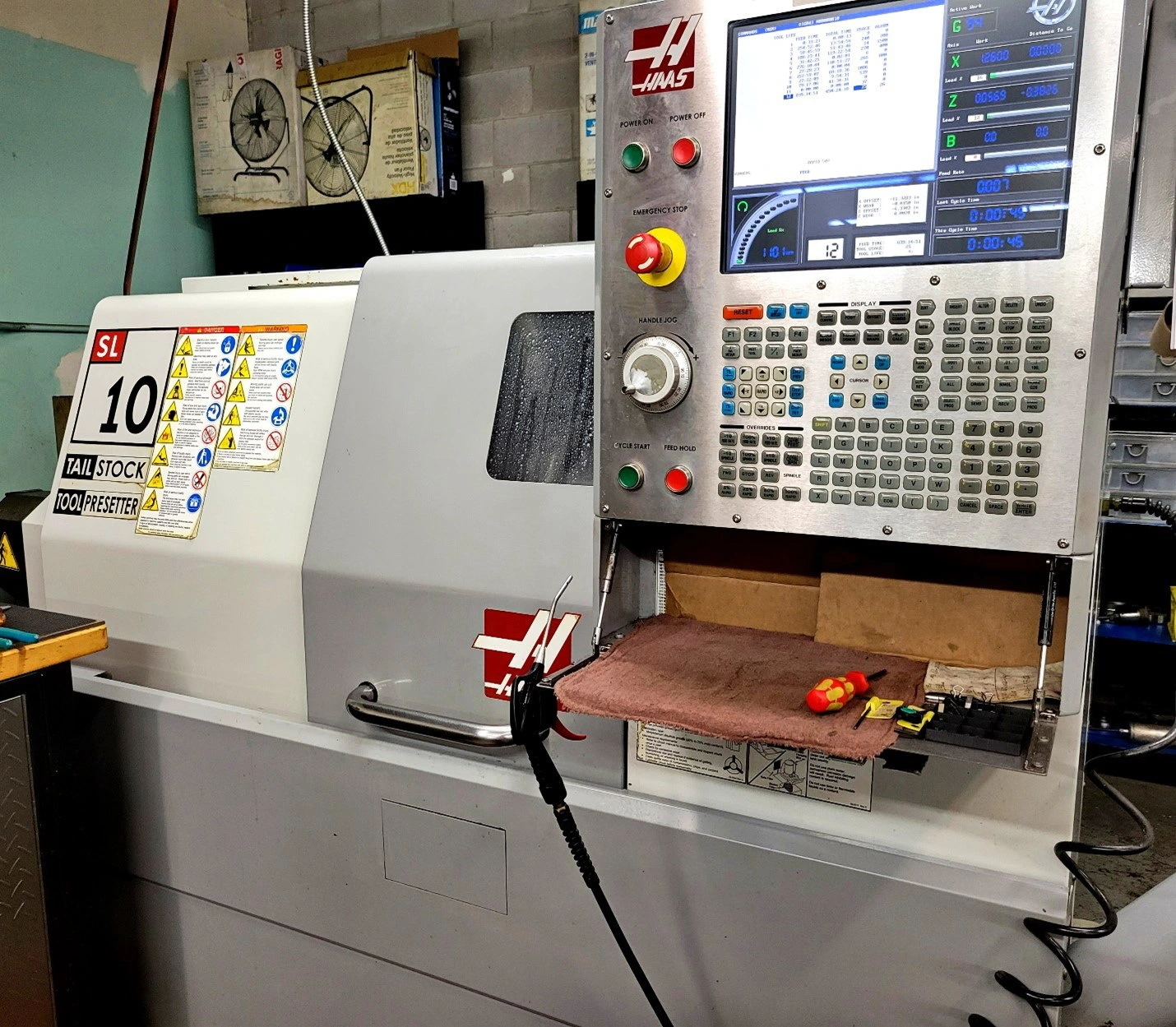

2008 Haas SL-10 CNC Lathe, Tailstock, Tool Pre-Setter, Chip Auger
| Swing | 16.25" | 412.75 mm |
| Swing Over Cross Slide | 8" | 203.2 mm |
| Machining Length | 14" | 355.6 mm |
| Max Turning Dia | 11" | 279.4 mm |
| Center Distance | 16.5" | 419.1 mm |
| # Axis | 2 | 2 |
| Chuck Size | 6.5" | 165.1 mm |
| Bar Capacity | 1.75" | 44.45 mm |
| Spindle Bore | 2.31" | 5.9 cm |
| Through Hole Draw Tube | 1.81 | 1.81 |
| Power | 15 hp | 11.2 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Spindle Nose | A2-5 | A2-5 |
| X-Axis Travel | 6.25" | 158.75 mm |
| Z-Axis Travel | 14" | 355.6 mm |
| Tailstock | Yes | Yes |
| Tailstock Travel | 4" | 101.6 mm |
| Tailstock Taper | MT3 | MT3 |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Turret Capacity | 12 | 12 |
| Made In | United States | United States |
| Control | CNC (HAAS) | CNC (HAAS) |
| Dimensions | 70" X 55" X 69" | 70" X 55" X 69" |
| Weight | 5,500 lb | 5,500 lb |
Tailstock
Chip auger
Tool pre-setter
