75 Ton Bliss #C-75, 4" str., 17" SH, 36" x 24" bed, 60-120 SPM, #29126
| Tonnage | 75 T | 68.039 t |
| Stroke | 4" | 101.6 mm |
| Shut Height | 17" | 431.8 mm |
| Bed (L-R) | 24" | 609.6 mm |
| Bed (F-B) | 36" | 914.4 mm |
| SPM Min | 60 strokes/min. | 60 strokes/min. |
| SPM Max | 120 strokes/min. | 120 strokes/min. |
| Clutch Type | A | A |
| OBI Type | Flywheel | Flywheel |

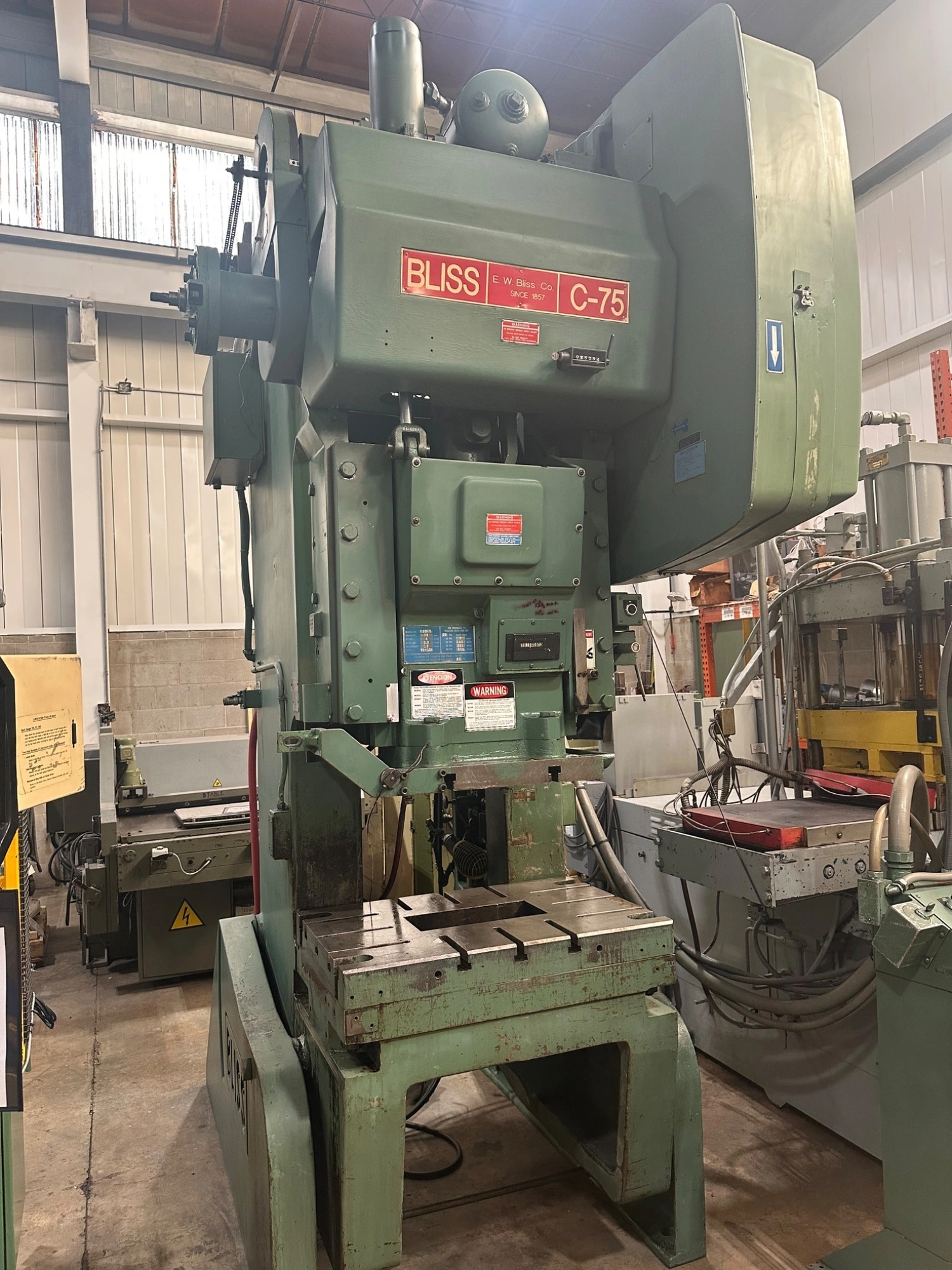

USED 75 TON BLISS #C-75 O.B.I. PUNCH PRESS
Model no. C-75
Air clutch & brake; air counterbalances; flywheel type
Stroke: 4"
Slide adjustment: 3-1/2"
Shut height S.D.A.U.: 17" to top of bed
Area of bed: 36" L-R x 24" F-B
Bolster thickness: 3-1/2" (T-slotted)
Area of slide: 24" L-R x 18" F-B (T-slotted)
Shank hole diameter: 2-5/8"
Throat depth: 13"
Opening through back: 19"
Floor to top of bed: 36"
S.P.M. approx.: 60-120
EQUIPPED WITH: Free standing control with dual palm buttons for run
with emergency & top stop buttons
Push-pull button for start - stop
Key selector switches for inch - off - single - cont.;
slide adjustment off - on; motor forward - reverse
Variable speed adjustment with control for slow - fast
Trabon automatic oil lubrication
Rotary cam limit switches
Knockout slot in slide
Air surge tanks
10 HP 1730 RPM 230/460/3/60 Reliance variable speed
drive motor
Weight approx. 21,000 lbs.
Overall dimensions approx. 80" L-R x 95" F-B x 137" H
Serial no. H69976
Stock no. 29126
FOB ELK GROVE VILLAGE, IL
