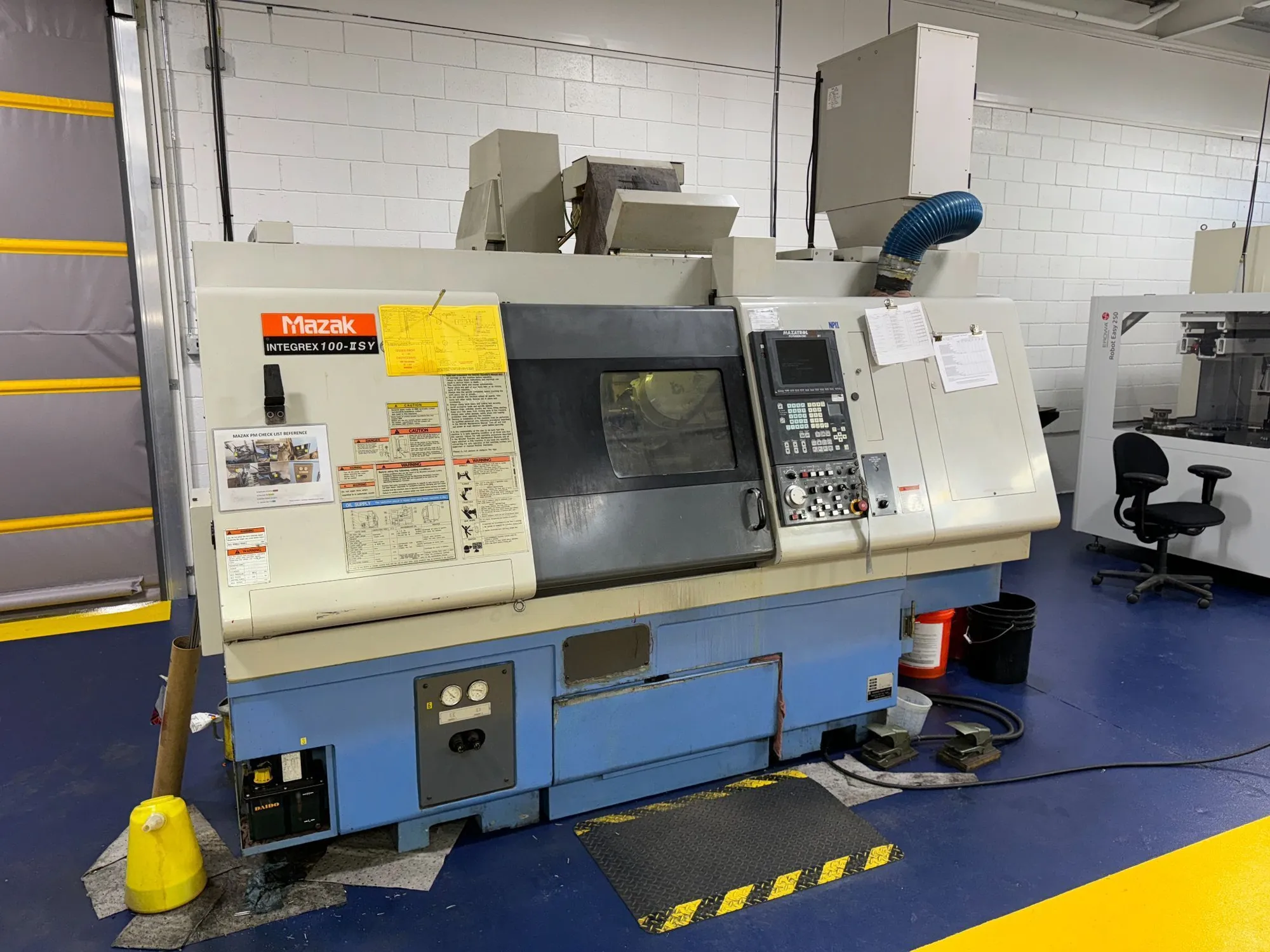

Mazak Integrex 100-IISY CNC Turning/Milling Center, 2001, Mazatrol 640 MT CNC Control, 5-Axis, New Hard Drive, Very Good Running Condition, Loaded With Toolholders.
| # Axis | 5 | 5 |
| Swing | 18.5" | 469.9 mm |
| Machining Length | 29.72" | 754.89 mm |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 1.65" | 41.91 mm |
| Power | 10 hp | 7.5 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 18.5" | 469.9 mm |
| Tailstock | No | No |
| Control | CNC (Mazatrol 640 MT) | CNC (Mazatrol 640 MT) |
| Dimensions | 121" x 84" | 121" x 84" |
| Weight | 16,500 | 16,500 |
Mazak CNC Turning/Milling Center
Model No. Integrex 100-IISY
Serial No. 158749 Year: 2001
5-Axis CNC
18.5" Max. Swing Over Bed
18.5" Max. Turning Diameter
29.72" Max. Turning Length
14.7" X-Axis Travel (Cross Travel of Universal Head or Upper Turret)
30.87" Z-Axis Travel (Longitudinal Travel of Universal Head or Upper Turret)
2.36" Y-Axis (Y1-Axis) Travel (Travel of Universal Head)
+/- 225 Deg. B-Axis (Rotation of Universal Head)
0.001 Deg. C1-Axis Rotation (Indexing Positions of Main Spindle)
A2-5 Main Spindle Nose Taper
5,000 RPM Main Spindle Speed Range
6,000 RPM Sub-Spindle Speed Range
1,181 IPM X-Axis Universal Head Cross Travel Rapid Traverse Rate
1,299 IPM Z-Axis Universal Head Longitudinal Rapid Traverse Rate
400 RPM C-Axis Rapid Traverse
10,000 RPM Upper Turret Live Tooling Speed Range
40-Position Upper Turret Tool Capacity
121" x 84" x 97" Overall Machine Dimensions
16,500 Approx. Weight
Equipped With:
Mazatrol 640 MT CNC Control System
ATS Collet Chucks on Main & Sub-Spindles
Tsubaki MT10 Chip Conveyor
EIA/ISO Input Function
Helical Interpolation
Multi-Tap Transformer
Full Set of Manuals
PCMCIA Interface
Trion Mist Collector
Coolant System
RS-232C Port
Tool Presetter
Parts Catcher
Barfeed Interface
15-HP Main Spindle Motor
7.5-HP Upper Turret Live Tooling Motor
460/3/60 Electrics
