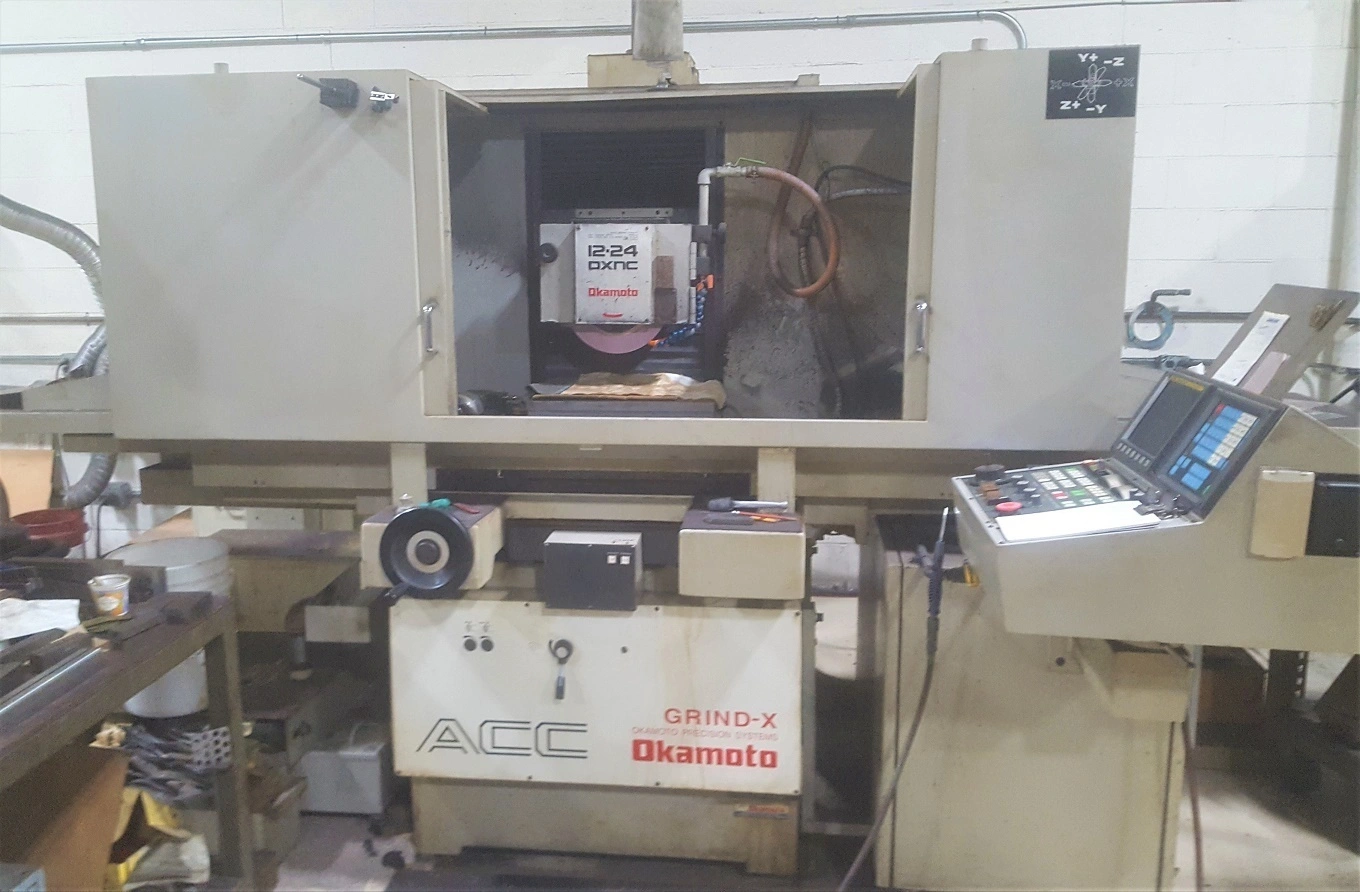

USED 2004 OKAMOTO ACC-12.24DXNCP SURFACE GRINDER

Rotary Dresser, Okamoto Fanuc Series 0-M CNC

Okamoto Model ACC Grind-X 12.24 DXNC CNC Surface Grinder

Parts and Service Available
Table working capacity: 12" X 24"
Max Dist. Under 12" Wheel to Table: 13.6"
Table Load Capacity: 925 Lbs.
T-Slots: .67" X 3"
X-Axis Longitudinal Feed: 30"
Max Surface Speed: 6500 SFPM
Table Feed Rate: 3-82 Feet Per Minute
Z-Axis Crossfeed: 13.3"
Intermittent Traverse Feed: .02-.80
Y-Axis Vertical Feed: .001-40 IPM
Grinding Wheel: 14" X 2" X 5"
Grinding Wheel Speed: 500-1800 RPM
Grinding Wheel Motor: 7.5 HP
Power Supply: 230/460, 3ph, 60 Hz
Equipped with:
Fanuc Series 0-M CNC Control
Rotary Dresser
Wheel Balancer with 6 new and 12 used wheels (with mounting flanges)
Angles for grinding at 45 Degrees
