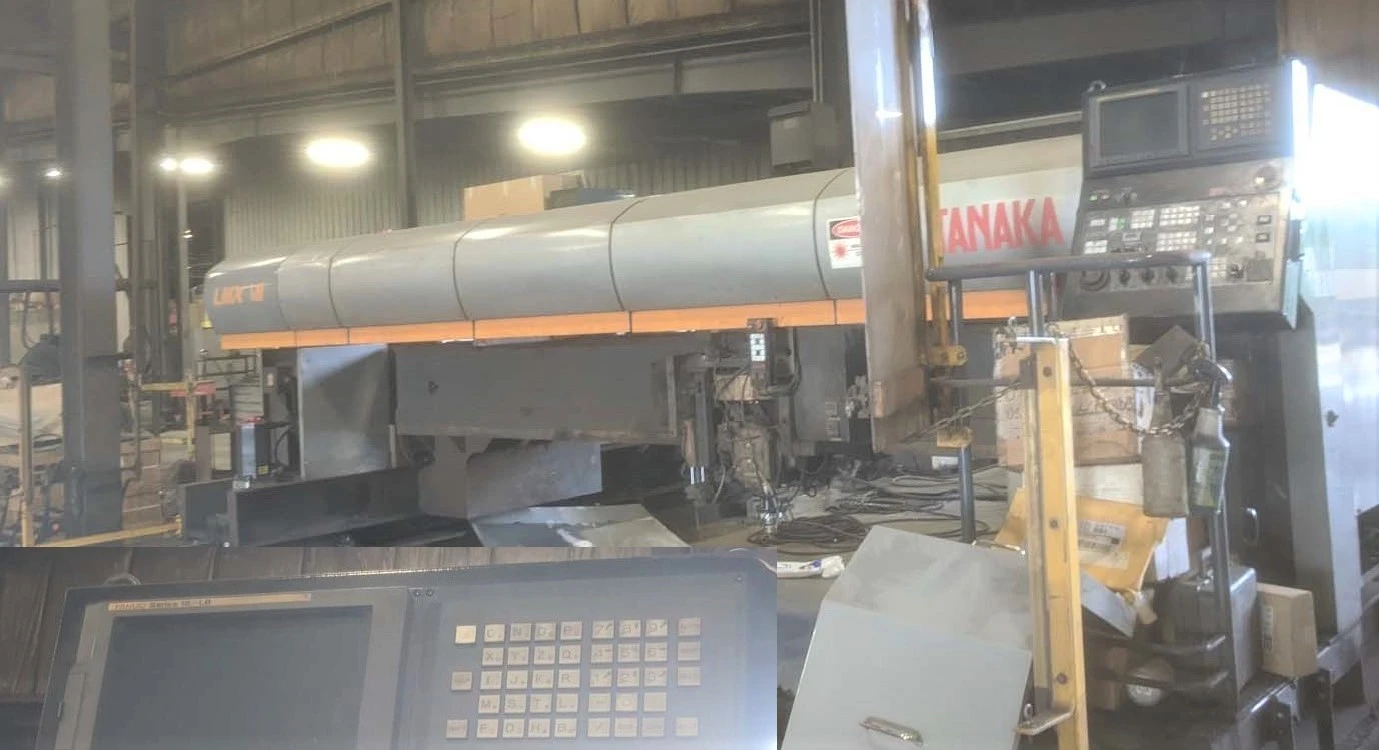

TANAKA LMX VII Z30-TF6000 C02 CNC Laser
| size | 120" x 480" | 120" x 480" |
| Sheet-W | 120" | 3,048 mm |
| Sheet-L | 480" | 12,192 mm |
| Wattage | 6000 w | 6,000 W |
| X | 480" | 12,192 mm |
| Y | 120" | 3,048 mm |
| Z | 7.87" | 199.9 mm |
| Control | CNC (Fanuc 16iL CNC) | CNC (Fanuc 16iL CNC) |
Tanaka Model LMX VII Z30-TF6000 6000 Watt CNC Laser System
Laser Output: 6000 Watts
Cutting Width: 120"
Cutting Length: 480"
Z-Axis Travel: 7.87"
Rail Span: 169.29"
Rail Length: 708.66"
Cutting Capacity (Mild Steel): 1"
Feed Cut Rate: 944 IPM
Rapid Traverse: 1968 IPM
Equipped with:
Fanuc 16i-L CNC Control
Fanuc C6000i-A 6KW CO2 Laser Resonator
Contour Beveling Capable
Non Contact Height Sensor
