2 Axis, Slant Bed Design, Barfeed, Chip Conveyor, Fanuc 0iTC CNC
| size | 10" | 10" |
| Swing | 26" | 660.4 mm |
| Machining Length | 29.9" | 759.46 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3.5" | 88.9 mm |
| Power | 25 hp | 18.6 kW |
| Max RPM | 3,500 RPM | 3,500 RPM |
| Turning Dia | 9.8" | 248.92 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Fanuc 0iT) | CNC (Fanuc 0iT) |
Leadwell Model T-8 2-Axis Slant Bed CNC Lathe
Max swing: 26.3"
Bar capacity: 3.0"
Chuck size: 10"
X axis: 9.84"
Z axis: 25"
Spindle speed: 35-3500 rpm
Spindle nose: A2-8
Through hole spindle: 3.5"
Number of tool positions: 12
Turret indexing time: 1 second
X rapid traverse: 780 IPM
Z rapid traverse: 936 IPM
Spindle Motor: 25 HP
Length - 10 FT 4 IN
Width - 6 FT 4 IN
Height - 6 FT 5 IN (No Wood)
Conveyor & chip pan -
Length - 9 FT 8 IN
Width - 2 FT 6 IN
Height - 5 FT 6 IN
Fanuc 0iT CNC Control
Tailstock
10" 3 Jaw Hydraulic Chuck

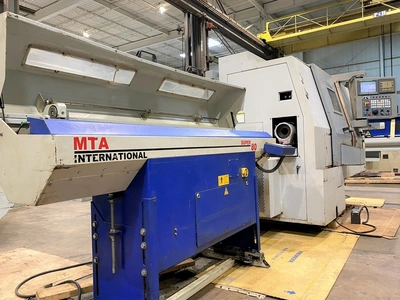

MTA International Super 80 Barfeed
Parts Catcher
Chip Conveyor
