40 Taper, Heavy Box Way Traveling Column Design, 9500 RPM, Siemens CNC
| size | 24" x 24" | 24" x 24" |

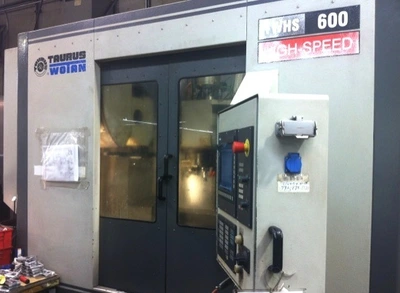

Wotan Model TWHS600 Traveling Column Vertical Machining Center
Table surface: 47.2" x 19.6"
X-Axis Travel: 23.6"
Y-Axis Travel: 19.7"
Z-Axis Travel: 23.6"
Taper In Spindle: No.40 BT
Spindle Speeds: 20 to 10000 RPM
Spindle Drive Motor: 17.7 HP
Max. dist spindle nose to table: 30.3"
Automatic Tool Changer: 24 Tools
Equipped with:
¯
Siemens Sinumerik 802D SL CNC Control
Box Ways and Cast Mono-block Bed Design
Spindle Chiller
24 Position Side Mount Tool Changer
Chip Conveyor
