40 Taper, 25" x 20" x 21" , 8000 RPM, Centurion 6 Control
| size | 25" x 20" | 25" x 20" |
| X Travel | 25" | 635 mm |
| Y Travel | 20" | 508 mm |
| Z Travel | 21" | 533.4 mm |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 24 | 24 |
| Taper | 40 | 40 |
| Table-W | 17" | 431.8 mm |
| Table-L | 31" | 787.4 mm |
| # Axis | 3 | 3 |
| Control | CNC (Centurion 6 Control) | CNC (Centurion 6 Control) |

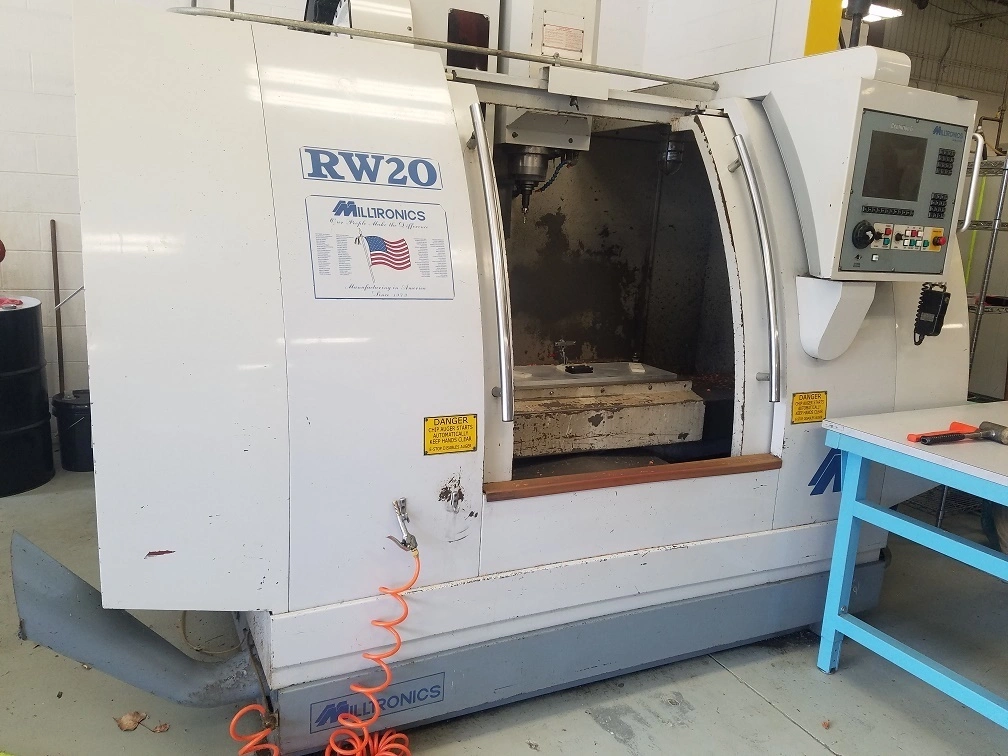

25" x 20" x 21" Milltronics Model RW-20 CNC Vertical Machining Center
40 Taper, 8000 RPM, Centurion 6 Control
Specifications And Equipment
Table Working Surface: 17.7 " x 30"
X Axis Travel: 25"
Y Axis Travel: 20"
Z Axis Travel: 21"
Spindle Speeds: 8000 rpm
Taper: 40
Tool Changer: 24
Main Motor Drive: 15-22 HP
Control: Centurion 6 Control
Centurion 6 Control, Electronic Handwheel, Rigid Tapping, 16 MB Memory,
Chip Auger
