USED 2007 HWACHEON MEGA T130 HEAVY DUTY CNC LATHE

6.1" Bore 50" Chuck, Fanuc 21i-TB CNC Control

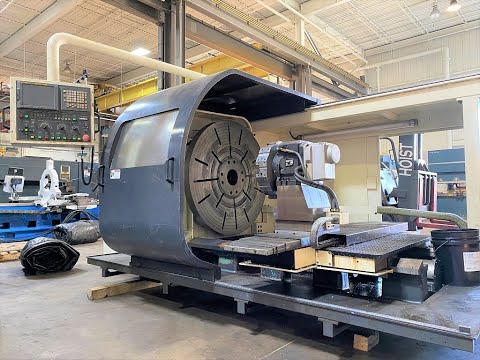

Hwacheon Mega T130 Big Bore Heavy Duty CNC Lathe

Specifications (Preliminary)
Swing Over Bed: 51.18" / 1300mm
Swing over Cross Slide: 35.83" / 930mm
Max Cutting Dia Over Cross Slide: 35.4" /920mm
Max Cutting Dia Over Bed: 51" / 1300mm
Spindle Nose: A2-15
Spindle Bore: 6.1"
Spindle Speeds: 4-400 RPM
Max Stroke X Axis: 25.98" / 660mm
Max Stroke Z Axis: 43.3"
Rapid Feeds X/Z: 236 IPM / 6000mm/min
Turret Positions: 12
Main Motor Drive: 30 HP
Power Capacity: 45 Kva, 108 Amps
Construction: High rigid flat bed structure
Equipped With:
50" Chuck, Fanuc 21TB CNC Control, Duplomatic K20 12 Position Turret
Manual Pulse Generator/Remote Jog Hand Wheel
