14 ga. x 10' Wysong #1410, 24" FOPBG, 10' sq. arm, #29384
| Max Thickness | 14 ga. | 1.9812 mm |
| Length | 10' | 3 m |
| Hyd/Mech | Mech | Mech |
| Back Gauge | 24" | 609.6 mm |
| Power | 5 hp | 3.7 kW |
| SPM | 60 strokes/min. | 60 strokes/min. |
| Dimensions | 168" L-R x 71" F-B x 71" H | 168" L-R x 71" F-B x 71" H |
| Weight | 9,500 lbs. | 9,500 lbs. |

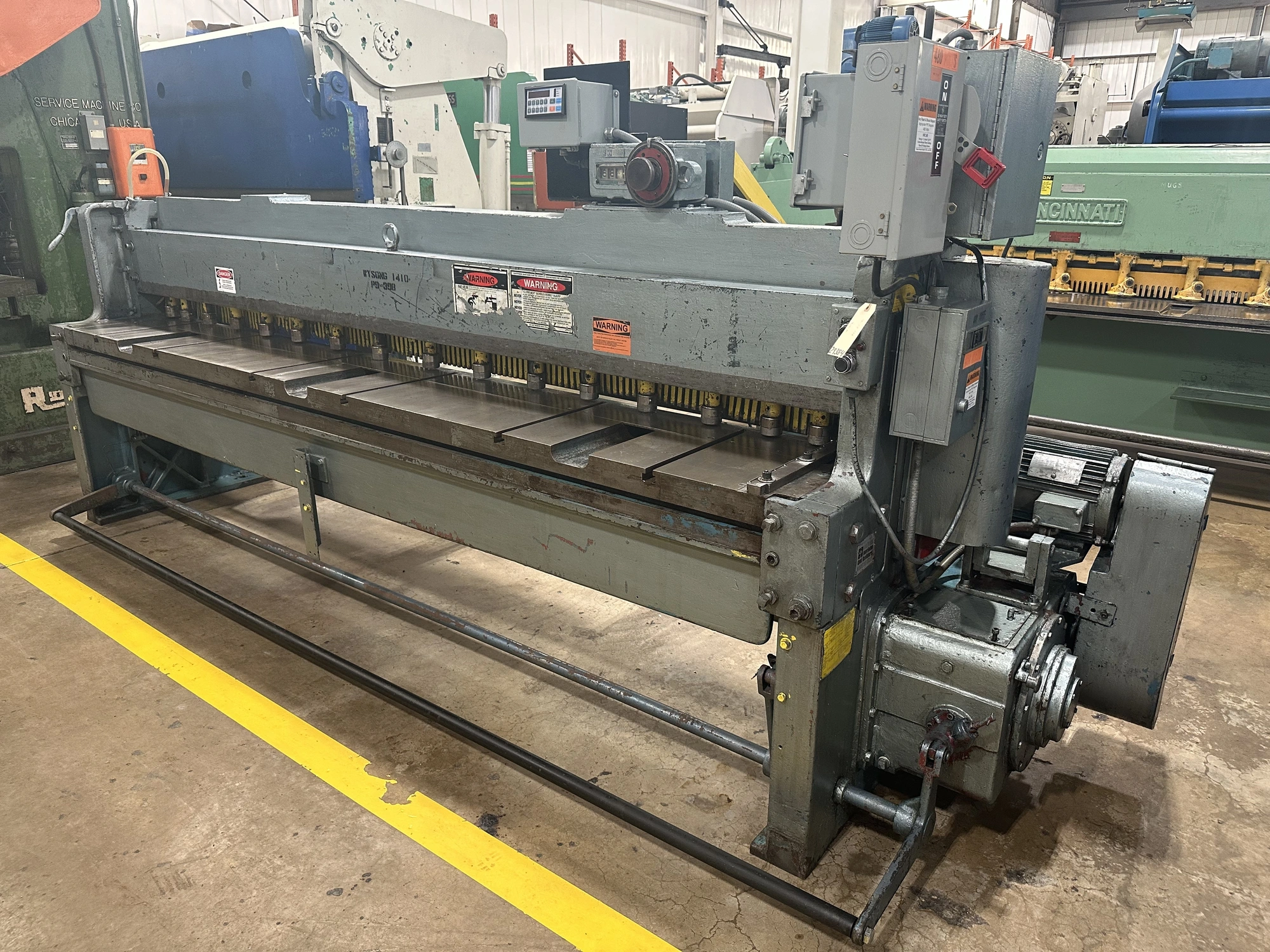

USED 10 FT. X 14 GA. WYSONG #1410 METAL SHEAR
Model no. 1410
Capacity: 10' x 14 ga. mild steel
10' x 18 ga. stainless steel
Length of knives: 10'2"
Rake angle: 3/8"
Holddowns: 16
S.P.M. approx.: 60
Floor to top of bed: 33"
Weight approx. 9,500 lbs.
Overall dimensions approx. 168" L-R x 71" F-B x 71" H
Serial no. P9-398
Stock no. 29384
FOB ELK GROVE VILLAGE, IL
24" front operated programmable back gauge with
digital readout & precision adjustment
10' squaring arm
(2) stock support arms
Full length foot treadle
Pushbuttons for start – stop, forward - reverse
Bijur one shot oil lubrication
(6) T-slots in top of table
T-slot in front of table
1/4 HP 90 volt back gauge motor
5 HP 1745 RPM 230/460/3/60 motor
