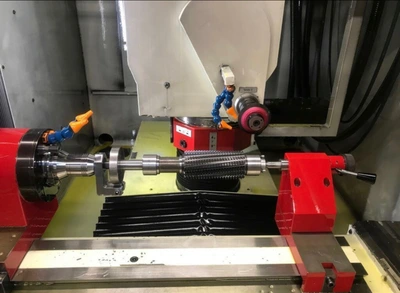

SAACKE 5 Axis CNC Tool and Cutter Grinder. NUM 1O6O M Set Up for Wet-Grinding
| # Axis | 5 | 5 |
| Swing | 150 mm | 5.9055" |
| Centers | 295 mm | 11.614" |
| Control | CNC (NUM 1060) | CNC (NUM 1060) |
Working Area
Height of Centers 150 mm
Max Tool Dia 295 mm
X Axis 620 mm
Z Axis 350 mm
Y Axis 250 mm
B Axis 180deg/sec
A Axis +- 20"
Taper ISO 50
Spindle Speeds 2400 / 4800 RPM ( Grinding Head )
Workhead Speeds 40 RPM
Main Motor 4.4 kW
Equipped With
NUM1060 CNC
Guideways:
V-type needle bearings hardened guide ways
Table speed lnfinltely adjustable .
Useful table area: 98O x 2OO mm
Cross/Vertical sIide
Transverse stroke Z-axis 35O mm Drive via ball screw spindle
with 2 preloaded nuts Guideways:
V-type needle bearings
on hardened guideways
