DRO, VERSAGRIND BELT ATTACHMENT, GRAYMILLS PAPER FILTRATION, REBUILT (2020)
| size | 30" x 96" | 30" x 96" |
| Swing | 30" | 762 mm |
| Centers | 96" | 2,438.4 mm |
| Power | 7.5 hp | 5.6 kW |
| Workhead Power | 3 hp | 2.2 kW |
| Workhead Speed | 96 RPM | 96 RPM |
| Grinding Wheel Dia. | 24" | 609.6 mm |
| Max Weight Between Centers | 2,500 lb | 1,134 kg |
| Dimensions | 240" L x 102" W x 90" H | 240" L x 102" W x 90" H |
| Weight | 25,000 Lbs. | 25,000 Lbs. |

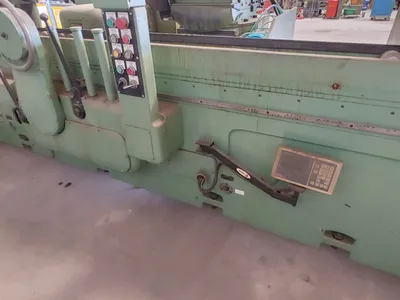

Landis CHW 30" x 96" Cylindrical Grinder Refurbished (2020)
Max Swing 30"
Distance Between Centers: 96"
Grinding wheel speeds: 1223 & 1462 rpm
Headstock swivel: counterclockwise 90 degrees
Clockwise 75
Table speeds: 3 - 130 ipm, variable
Table swivel: 12 degrees
Electrics: 460/480/3/60
Versagrind belt attachment, included with option load meter on spindle
2-axis digital readout
7.5 hp vector wheel drive
Graymills paper filtration unit, with pump
Chuck on headstock
Reconditioned in (2020) Landis Grinder Details: Disassemble, clean and paint, flush lube system, install new lube filters. Replace any sealtite, hoses, bearings as needed. Assemble, check for proper table fit, reset geometry / center line. Power up, debug, check for proper operation.
