10 ga. X 10' Cincinnati #1010, 10' sq. arm, 36" back gauge, #29407
| Max Thickness | 10 ga. | 3.5814 mm |
| Length | 10' | 3 m |
| Hyd/Mech | Mech | Mech |
| Back Gauge | 36" | 914.4 mm |
| Power | 10 hp | 7.5 kW |
| SPM | 65 strokes/min. | 65 strokes/min. |
| Dimensions | 155" L-R x 72" F-B x 80" H | 155" L-R x 72" F-B x 80" H |
| Weight | 14,000 lbs. | 14,000 lbs. |

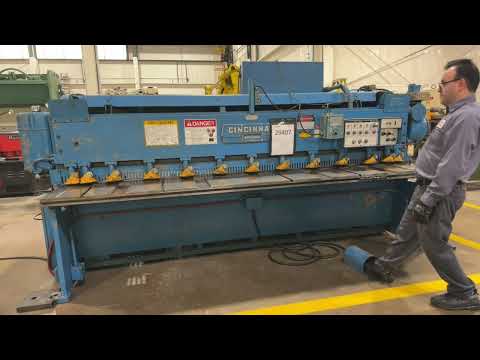

USED 10 FT. X 10 GA. CINCINNATI MODEL #1010 METAL SHEAR
Model no. 1010
Capacity: 10' x 10 ga. mild steel
Length of knives: 10'6"
Distance between housings: 10'3"
Gap: 6"
Rake angle: 7/32"
Holddowns: 13
Holddown to knife edge: 5/8"
Distance under holddowns: 1/4"
Floor to top of bed: 32"
S.P.M. approx.: 65
Weight approx. 14,000 lbs.
Overall dimensions approx. 155" L-R x 72" F-B x 80" H
Serial no. 37252
Stock no. 29407
FOB ELK GROVE VILLAGE, IL
36" front operated power back gauge with
pushbuttons for fine adjustment forward –
rapid traverse – forward – backward & readout
10' squaring arm
(2) stock support arms
Electric foot switch
Pushbuttons for start - stop
Automatic oil lubrication
(5) dovetail slots in top of bed
Dovetail slot in front of bed
Approx. 1/2 HP back gauge brake motor
10 HP 1650 RPM 230/460/3/60 motor
