| size | 10" x 27" | 10" x 27" |
| Swing | 10" | 254 mm |
| Centers | 27" | 685.8 mm |

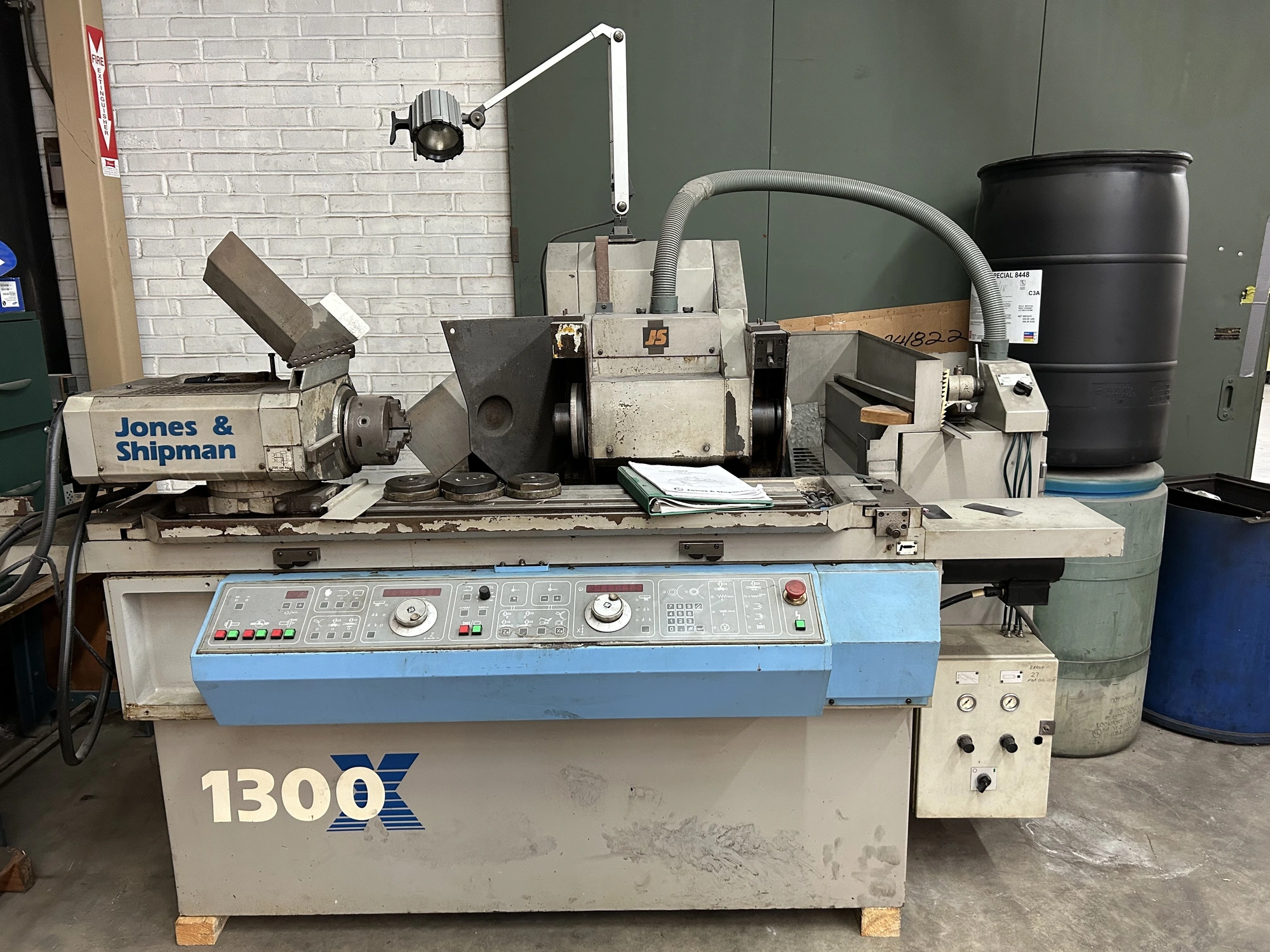

Jones & Shipman 1300X High Precision ID OD Universal Cylindrical Grinder
Swing:............................... 14"
Distance Between Centers:............ 27"
Table Swivel:........................ 16 Degrees CW
18 Deg. CCW
Feed Rate:........................... Up to 196.8"
Minimum Programmable Increment ...... 0.00005"
HPG Increments ........ 0.00005", 0.0005", or 0.005"
Wheelhead:
Total Infeed Travel:................. 9.6"
Max. Programmable Diametral
Infeed Rate, per Minute ............ 3.9"
Minimum Programmable Increment ...... 0.00005"
HPG Increments ........ 0.00005", 0.0005", or 0.005"
Swivel Range ........................ 190 Degrees CW
45 Deg. CCW
External Grinding Wheels:
Grinding Wheel Size, L.H. Standard:.. 14" x 2"W x 5"B
R.H Standard: .. 12" x 1"W x 5"B
Spindle Speeds (3):.......... 1775, 2068 & 2400 RPM
Motor Power: ........................ 5.5 H.P.
Headstock:
Swivel:.............................. 15 Degrees CW
90 Deg. CCW
Speed, Infinitely Variable:.......... 30 to 450 RPM
Centers, Standard/Reduced ........... #5 MT/#3 MT
Approximate Weight: ................. 5,300 Lbs.
Approximate Dimensions: .......... .. 99"L x 55"D x 71"H
