Generation 2, 5 axis simultaneous machining of complex-shaped products for medical, aircraft and automotive industries due to drive motor (DDM, B-axis)
-optimized working area with 78% longer z-travel for workpieces up to 800 mm length and 0 430 mm
-up to 10 live tools with 10,000 min-1 on the BMT- turret (built in motor turret) highest and constant accuracy without compensation due to thermal control; cooling of all ball screws and ball screw nuts for the spindle, turning and milling spindles incl. the B-axis the BMT turret
-Celos from DMG Mori with operate 4.5 on siemens 840D solutionline or FANUC 31i-B, From Medical Facility
| # Axis | 5 | 5 |
| Swing | 14.6" | 370.84 mm |
| Machining Length | 17.7" | 449.58 mm |
| Chuck Size | 7.9" | 200.66 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 14.8 hp | 11 kW |
| Max RPM | 10,000 RPM | 10,000 RPM |
| Turning Dia | 14.6" | 370.84 mm |

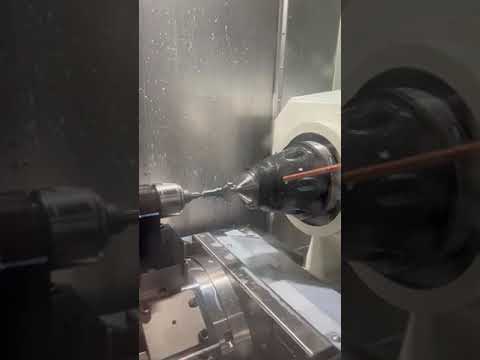

DMG Mori NTX 1000 5 Axis Multi Function CNC Lathe (2019)
NTX 1000 <2nd generation
Control
Control F31Ib5 with CELOS
CELOS-ERGOline touch
Spindle
(Spindle1) through-spindle hole dia. 61mm, 6000min-1 (bar work capacity dia. 52mm) (STD) (for Fanuc) standard spindle
(Spindle 2) 11/7.5 kw, 60000min-1 (for Fanuc)
Chuck for main spindle
(Spindle1) KITAGAWA 8in. hollow chuck B208A521
(Spindle 2) Hollow cylinder set for KITAGAWA 8in. Hollow chuck B208A521 (without chuck body)
Chuck for counter spindle
(Spindle1) KITAGAWA 8in. hollow chuck B208A521
(Spindle 2) Hollow cylinder set for KITAGAWA 8in. Hollow chuck B208A521 (without chuck body)
Equipment for Chucks
Chucks foot switch (double) for main and counter spindle
Tool spindle
Standard tool spindle, 12000min-1, 9/5 5kw, 49.4 Nm (15%ED/21.9 Nm) (Turret 2) (for FANUC)
Turret
10 Station Bolt Tightened Turret, Milling Specifications, 10000/min-1, 1 5/1.2 kW, 4 8/2.3 Nm (Turret 2) For Fanuc
Tool Magazine
Tool storage capacity 39 tools (STD)
Coolant supply/ chip removal
Usable coolant type: water-soluble coolant chip conveyor ( right discharge, hinge type+drum filter type)
Through spindle coolant/air (switching specifications) rotating clear-view window
Air blow for tool tip (tool spindle) Air blow for chuck (counter spindle)
Measuring/ Monitoring
Manual in machine tool presetter (removable type) (STD) Full closed loop control for X-axis (tool spindle) (direct scale feedback)
Full closed loop control for X-axis (lower turret) (direct scale feedback)
Full closed loop control for Y-axis (tool spindle) (direct scale feedback)
Full closed loop control for Z-axis (tool spindle) (direct scale feedback)
Full closed loop control for Z-axis (lower turret) (direct scale feedback)
In-machine workpiece measuring system radio signal transmission type touch sensor (RENISHAW, RPM600) Tool breakage detection (contact type/BLUM Z-Pico)
Automation
Signal lamp 4 colors (red, yellow, green, blue)
Workpiece unloader (turret type )
Spindle 2 workpiece ejector
Interface for bar feeder (LNS) (multiple)
General options
Multi dry filter
10 external M-codes
Manual pulse generator (separate type)
Setting unit inch
Technology cycle
Alternating speed
3D Quick set
Options for control
Islands, open pockets
Efficient production package ( high speed canned cycle)
Addition of optional block skip (soft key type 2-9)
X-Axis direction JIS/ISO Standard
Screen text Language
Screen display English
High Press. Coolant, Renishaw Probe, Blum Laser tool Setter/Monitor, Mist Collector, Hainbuch Spanntop Main Chuck, Royal 3J Subspindle Collet Chuck, 20,000 rpm B Axis Spindle, 10,000 rpm Turret Milling, Schunk pneumatic Turret Chuck. Power On hours 19700, Spindle Hours 4616, From Medical Facility
