8' X 3/8"
| size | 8' x 3/8" | 8' x 3/8" |
| Length of Rolls | 8' | 2.4 m |
| (Init/Dbl Pinch or Pyramid) | INIT PINCH | INIT PINCH |
| # Rolls | 3 | 3 |
| Weight | 14500 | 14500 |

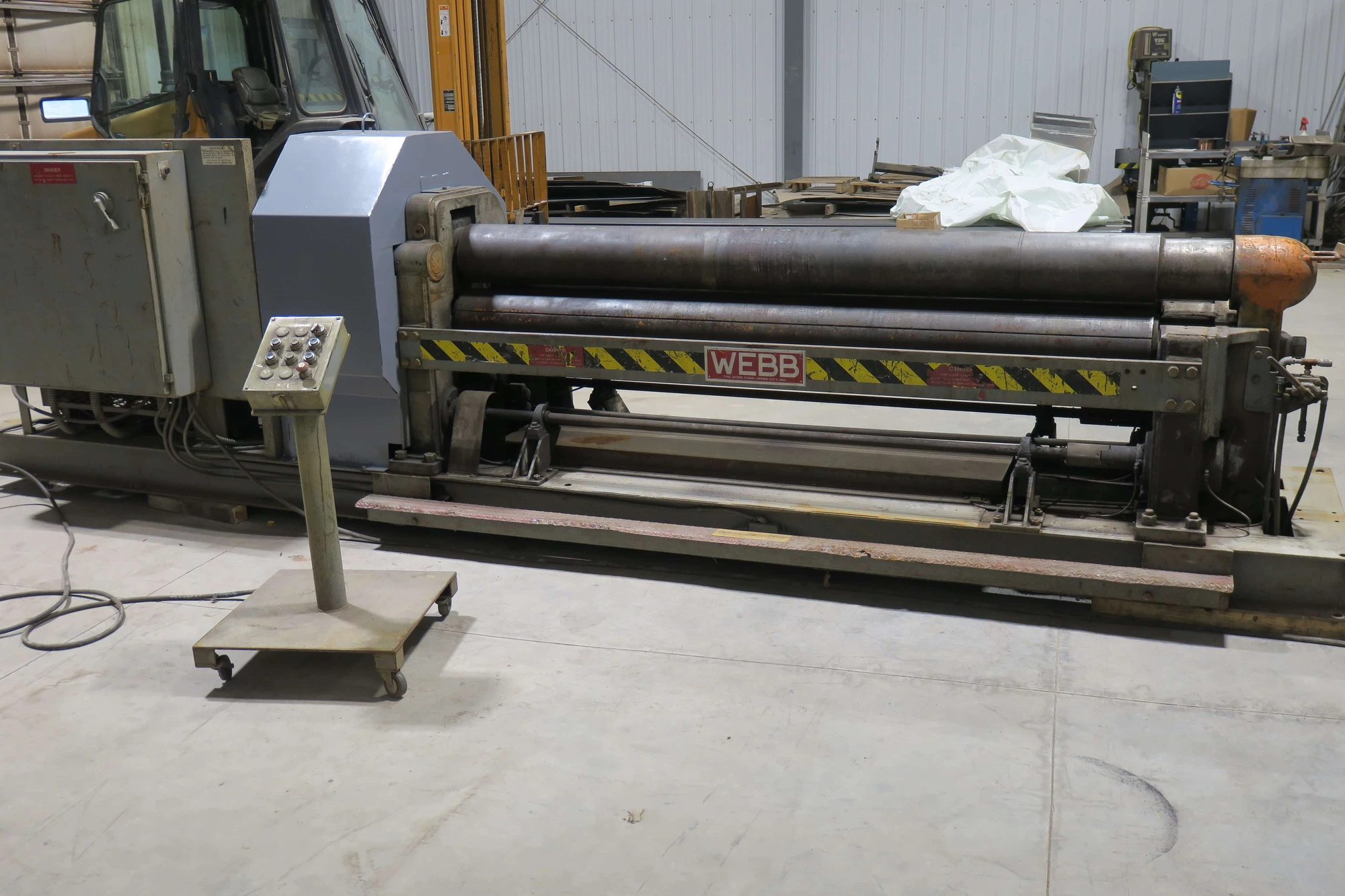

Webb Model 7L 8' X 3/8" Plate Bending Roll
Bending Length 8'
Nominal Capacity
Roll Length 98"
Roll Diameter 8.5"
Roll Drive Motor 20 HP
Voltage 230/460 - Amps 57 28.5 3 phase
Approx. Dimensions 210" x 60" x 54"
Approx. Weight 16,000 lbs
Current Electrics 230/3/60
