| size | 8" Chuck | 8" Chuck |
| Swing | 21.1" | 535.94 mm |
| Machining Length | 20.7" | 525.78 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.5" | 63.5 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,500 RPM | 4,500 RPM |
| Turning Dia | 12.6" | 320.04 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
Doosan Lynx 220LC CNC Lathe (2013)
Swing Over Bed: 20.1″
Max Turning Length: 20.7″
Max Turning Diameter: 12.6″
X-Axis Travel: 6.9″
Z-Axis Travel: 21.6″
Spindle Speed: 4,500 RPM
Spindle Motor: 20 HP
Spindle Bar / Bore Capacity: 2.68″ Bar / 2.99″ Bore
Spindle Nose: A2-6
Turret Stations 12 Stations
Machine Dimensions (L x W x H): 90″ x 72″ x 65.25″
Machine Weight (lbs): 7,000 LBS
Chip Conveyor: 103" x 18" x 63"
Coolant Tank: 96"x 15" x 45"
2,707 Hours
4500 Rpm Spindle Speed
12 Station Turret
2.660" Spindle Bore

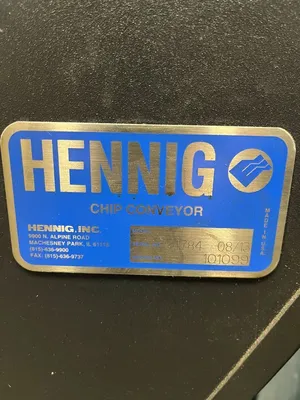

Henning Chip Conveyor
8" 3 Jaw Chuck Included (Brand New)
S26 Collet Chuck Included
Manuals Are Included
Tooling Not Included
Machine Is Fully Functional, Selling For Replacement Of New Machine With More Capabilities.
Can Inspect Under Power. Being Used Until New Machine Arrives.
We Can Load On Your Trailer The Day New Machine Arrives.
