60 ton x 6'
| size | 60 Ton x 6 | 60 Ton x 6 |
| Tonnage | 60 T | 54.431 t |
| Type | HYD | HYD |
| Overall Length | 6' | 1.8 m |
| Between Housings | 4.6' | 1.4 m |
| Stroke | 8" | 203.2 mm |
| # Axis | 3 | 3 |

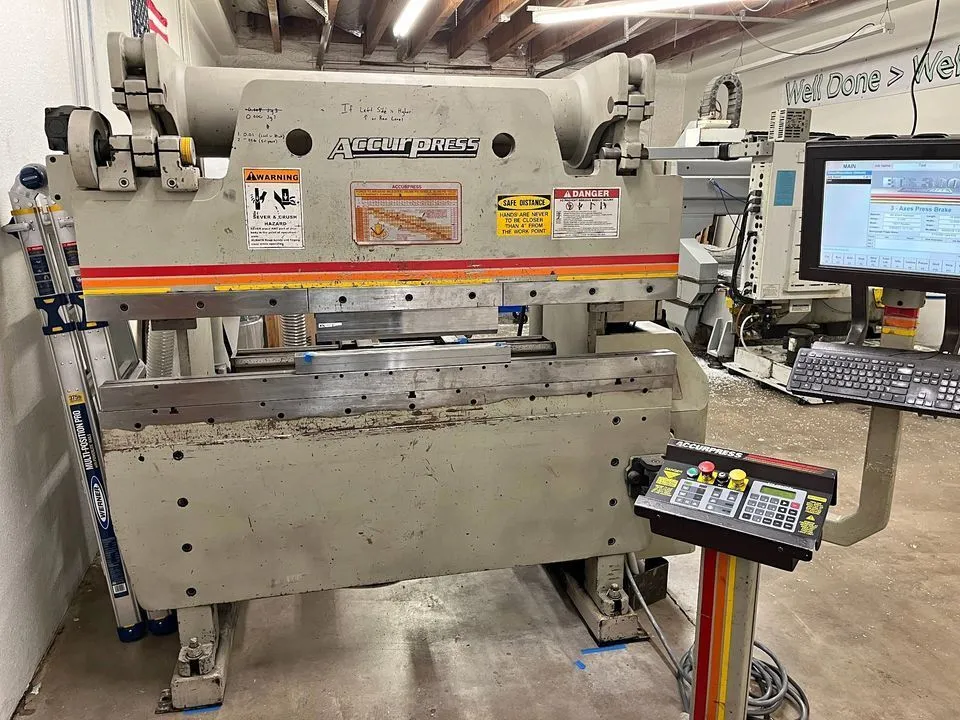

Accurpress 7606 60 Ton x 6' CNC Press Brake
Capacity: 60 Tons
Overall Bed Length: 6'
Distance Between Housings: 52"
Stroke (Adj): 8"
Open Height: 14"
Closed Height: 8"
Throat Depth: 8"
Speeds
Approach: 130 IPM
Press: 20 IPM
Return: 260 IPM
Main Motor: 10 HP
Electrics: 3Ph / 60V
Approx. Overall Weight: 6000 Lbs
Equipped With
Accurpress CNC Control (Ram and Backgauge)
Accurpress ETS Keypad
Accurpress Pedestal Control
Die Holder
Stroke Counter
- ETS 3000 Control
