3.03" bar cap, 12 Pos Turret, Tailstock, Chip Conveyor, Fanuc 0T
| size | 12" Chuck | 12" Chuck |

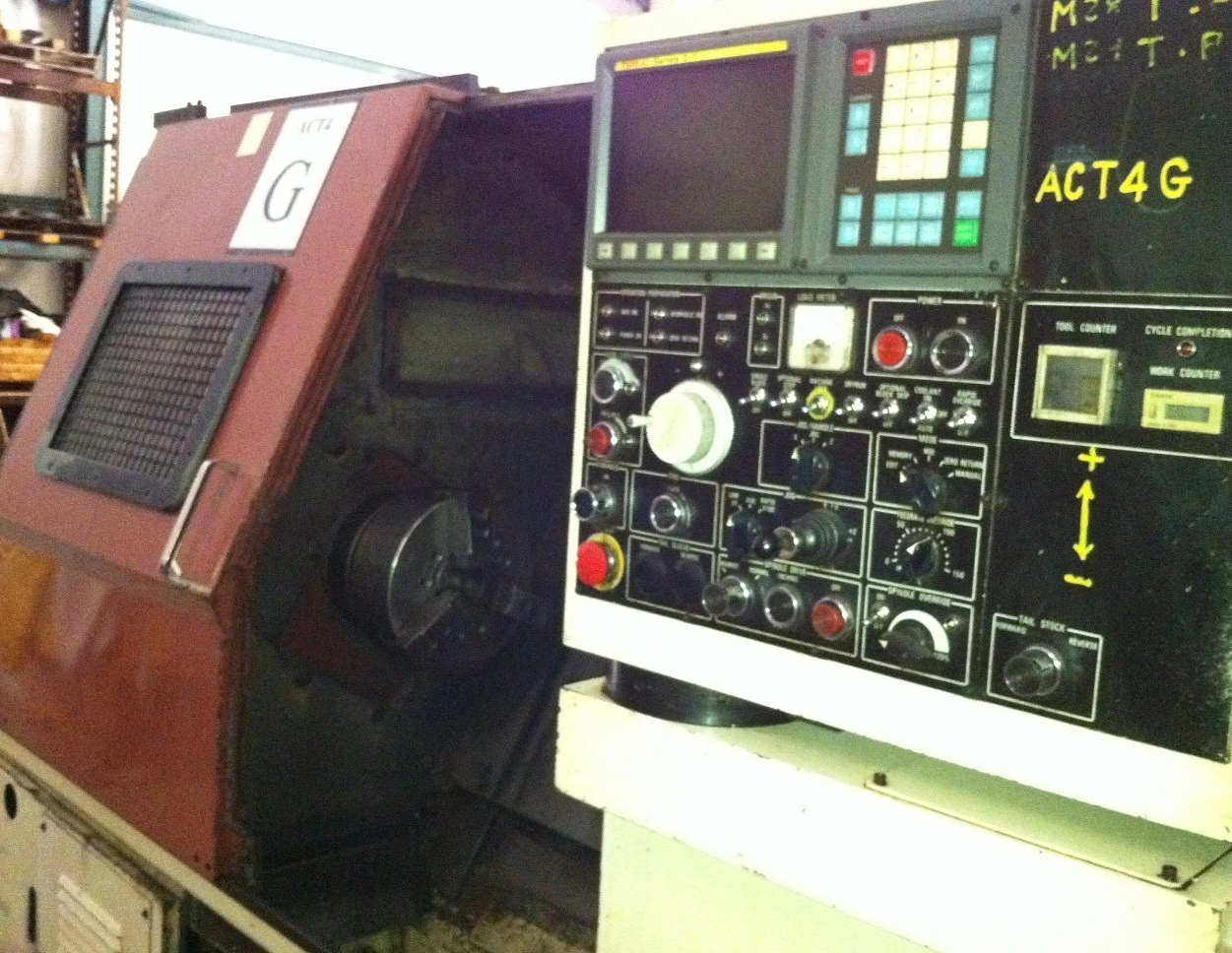

Okuma & Howa Model Act-4 CNC Turning Center
Swing Over Bed: 21.25"
Distance Between Centers: 29.52"
Maximum Turning Diameter: 13.77"
Maximum Turning Length: 28.74"
Spindle Speeds: 30-3200 RPM
Spindle Nose: A2-8
Spindle Hole: 3.03"
Spindle Drive Motor: 30 HP / 25 HP
X-Axis Travel: 8.85"
Z-Axis Travel: 29.52"
Tool Capacity: 12 TRT
Rapid Traverse: 472.44 IPM
Current Electrical Arrangement: 240/3/60
Equipped with:
Fanuc OT Control
12" 3-Jaw Kitagawa Hydraulic Chuck
Turbo Chip Conveyor
Tailstock
