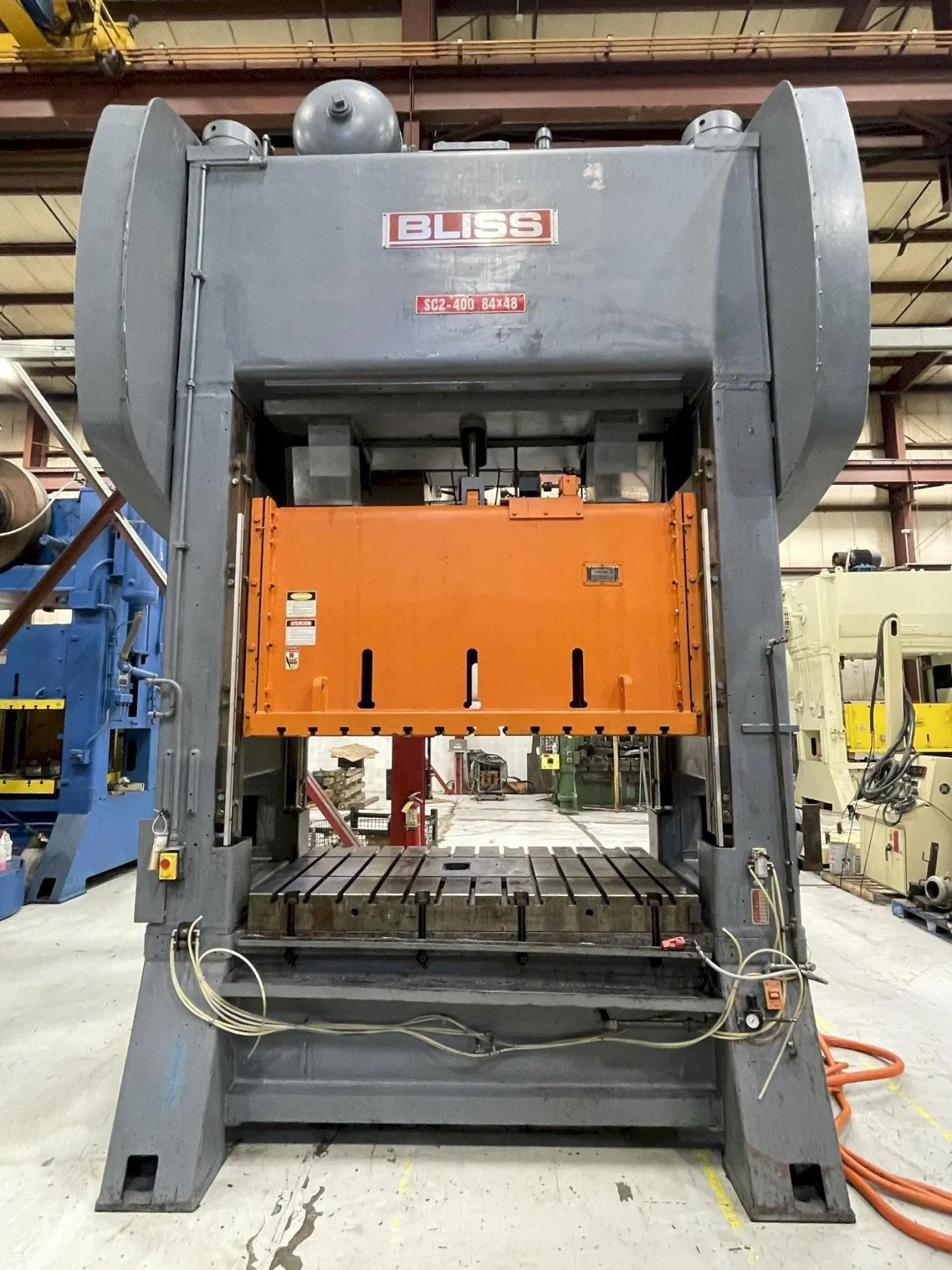

400 Ton Bliss, Model#: SC2-400-84-48, 84" x 48" bed, 12" stroke, 25-50 SPM, 29.5" Shut Height, 10" Adjustment, Omnilink Press Control
| Tonnage | 400 T | 362.874 t |
| Stroke | 12" | 304.8 mm |
| Shut Height | 29.5" | 749.3 mm |
| Bed area (Left to right) | 84" | 2,133.6 mm |
| Bed area (Front to back) | 48" | 1,219.2 mm |
| SPM min. | 25 strokes/min. | 25 strokes/min. |
| SPM max. | 50 strokes/min. | 50 strokes/min. |
| Adjustment | 10" | 254 mm |
| Windows Width | 31" | 787.4 mm |
| Slide Area | 84" x 48" | 84" x 48" |
Air Clutch and Brake
Air Counterbalances
T-Slotted Bolster and Ram
Trabon Recirculating Lubrication System
Omnilink 5000 Press Control
Floor Standing Press Control Console
8 Point Slide Guide System
Vibration Isolation Levelers
Single/Inch/Continuous
