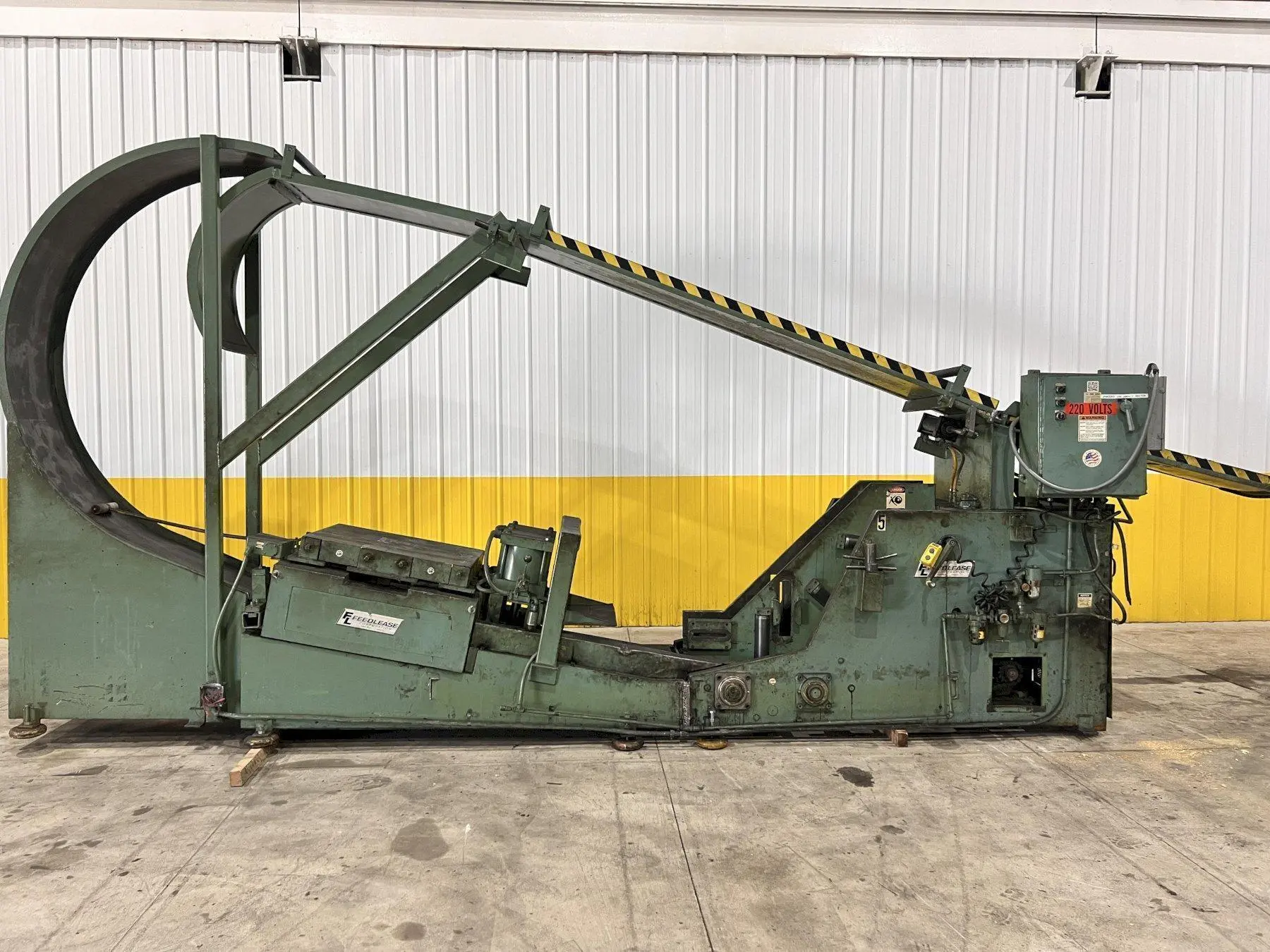

Feed Lease Coil Cradle - Straightener 12,000 x 18" Wide x .210"
| Coil Weight Capacity | 12,000 lb | 5,443.1 kg |
| Stock Width Capacity | 18" | 457.2 mm |
| Max Stock Thickness Capacity at Full Width | 0.25" | 6.35 mm |
| Coil O.D. Capacity | 60" | 1,524 mm |
Coil Weight Capacity.............................12,000 #
Model…………………………………….............…. FLCC-1860
Coil Width Capacity...............................18”
Stock Thickness Capacity……………………18” wide x 0.250” thick material
Coil O.D..................................................60”
Feed Lease Coil Cradle – Straightener: Model No. FLCC-1860
Entry and exit pinch rolls
3.5" Diameter straightening rolls
Individual upper roll adjustments
Entry stock end de-bender (dual cylinder - platen type)
Coil nesting rolls - motorized
Dual adjustable side plate coil restrictors
Reverse loop stock deflector
Overhead guide chute w/ chute extension
Operator's controls
Auto / Run cycle
Loop control
