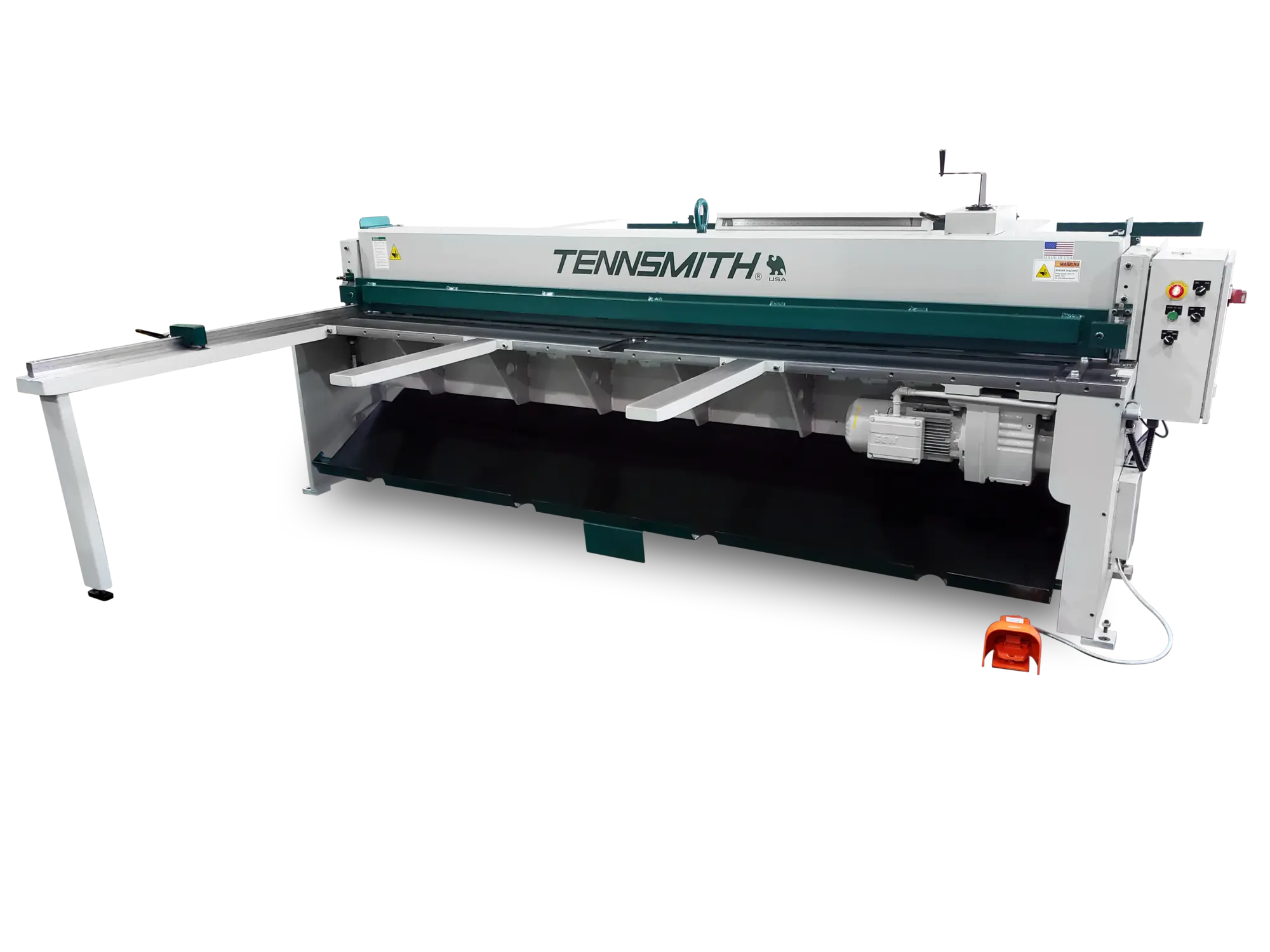

The LM series shears are standard with four-edge, high carbon, high chrome blades, independent, self-leveling hold down feet with noprene inserts, single continuous and jog stroke cycles, motor reverse switch, precision-macines table with hand well, dual inch/metric inlaid bed scales and non-metallic gibs.
| Max Gauge | 14 gauge | 14 gauge |
| Length of Blade | 121" | 3,073.4 mm |
| Hyd/Mech | Mech | Mech |
| Back Gauge | 24" | 609.6 mm |
| Power | 5 hp | 3.7 kW |
| SPM | 35 strokes/min. | 35 strokes/min. |
| Weight | 5900 | 5900 |
Capacity Mild Steel
14 Gauge
2.0 mm
Capacity, Stainless Steel
18 Gauge
1.25 mm
Maximum Cutting Length
121 in.
3073 mm
Back Gauge Range
30 in.
762 mm
Strokes Per Minute, Full Length
35
Motor-230/460v,3-PHASE, 60Hz
5 hp
Numbers of Holddowns
Solid bar with non-marring urethane insert
Floor Space, Gauges in Position
143 x 72 x 56 in.
3632 x 1829 x 1423 mm
Shipping Weight
5900 lbs
2682 kg
