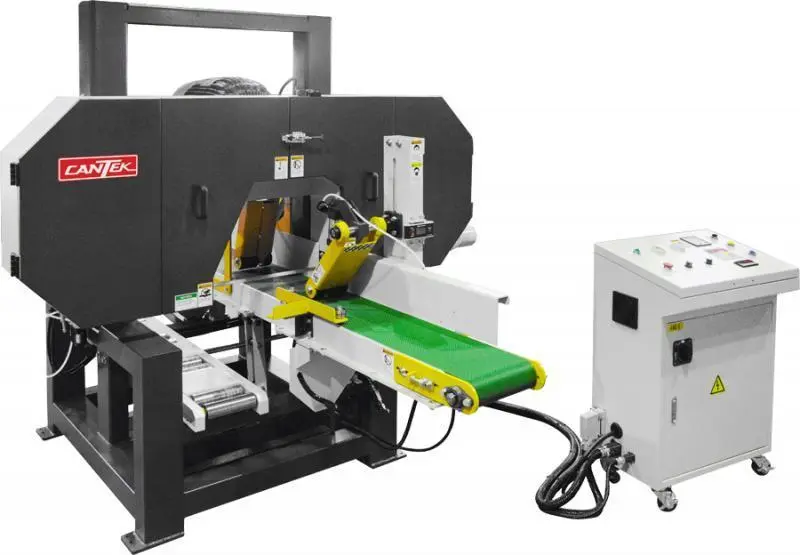

Cantek America offers various horizontal resaw options. Review features and specifications of each machine to find the one that meets your needs.
Features:
Heavy-duty tubular steel frame.
Solid steel saw wheels – precision machined and balanced.
Motorized thickness (blade height) adjustment with digital position readout.
Hydraulic blade tensioning.
Precision saw guide system – with moveable left guide to move as close as desired to the material being cut for improved cut accuracy.
Pneumatic pressurized top hold down rollers on feed conveyor.
Heavy-duty infeed guide-fence on conveyor right including holdover system.
Reinforced urethane conveyor belt for positive feeding and long life including.
Manually tilting feed belt for angle cutting from 0 – 45o
Variable feed speed by VFD (frequency inverter).
Motorized return conveyor belt allows material to be returned to the operator to be re-cut.
Air mist – blade cooling system.
Y Delta – low amperage starter on the saw motor.
Electrical components to UL/CSA standards – 460/3/60 electrics.
Smooth infeed system (limit switch & timer 1 to 3 seconds).
Max. Workpiece Size
300 mm x 300 mm
Distance from Blade to Conveyor
4 – 250 mm
Conveyor Belt Size
11.2” x 215” (285 mm x 5470 mm)
Machine Wheel Dimensions
28” Dia. x 2” Wide
Main Motor (Resaw Wheels)
30 HP
Conveyor Motor
3 HP
Blade Elevation Motor
¼ HP
Variable Feed Speeds
0~120 FPM (0~37 m/min)
Dust Hood Diameter
2 x 4”
Saw Blade Size (Normal)
180” (L) x 2” (W)
Feed Belts – Bed Angle
0 ~ 45o
Voltage – Stock Machine
460/3/60 electrics
Machine Weight
3960 lbs (1800 kgs)
Shipping Weight
4400 lbs (2000 kgs)
Shipping Dimensions
113” x 90” x 85” (2850 x 2270 x 2160 mm)
