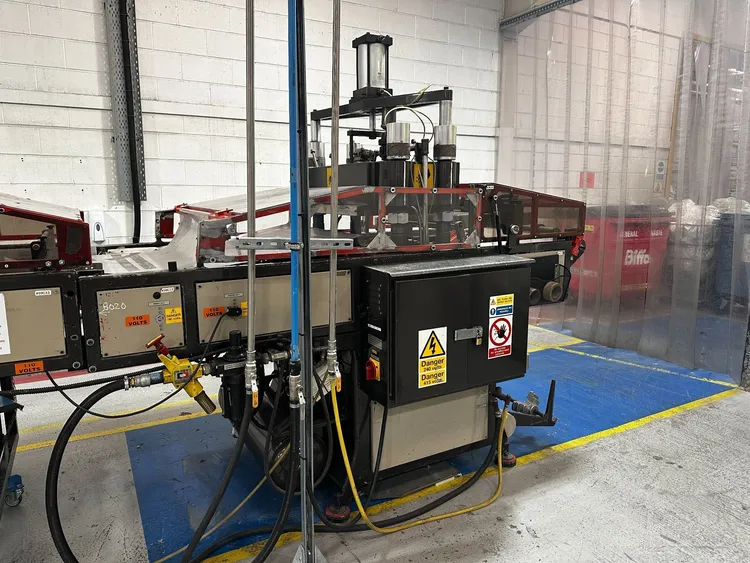

USED 2015 Modern Machinery 28'' x 42''

·        Machine built in 2015
·        Max tool size is 28” x 42”
·        Max roll width 30”
·        Approx. size 8’ x 50’ x 10’
·        Approx. weight 20,000 lbs
·        Machine comes with 5 HP Busch vacuum pump with 120 gallon vacuum reservoir tank along with 120 gallon air reservoir tank
·        Auto feed roll stand capable of holding 2 rolls up to 1000 lbs each and a max diameter of 60”
·        Machine consists of for, trim, and down stack/punch out onto conveyor
·        Capable of roll & sheet fed up to .125” thick
·        #50 pin chain to convey material, drive is servo driven and digitally controlled, capable of 88” per second
·        Automatic oiler & greaser
·        Machine is constructed out of heavy duty tubular welded frame
·        Oven
o   144” long clam shell style with emergency sag eye
o   Ceramic tiles (glass on bottom, cloth on top)
o   45 zones on top 16 zones on bottom
o   Zones controlled by % or temperature
o   Includes sheet softener and rail heaters (Calrod)
·        Form Station
o   Pneumatic control with toggle lock
o   Capable of pressure forming at a max of about 80 tons
o   Segen quick disconnects in each platen capable of 1000 lbs tool weight per platen
o   Shut height of 14” with a max stroke of 7 5/8”….open stop is adjustable close is not (7” of daylight for each platen
·        Trim Station
o   Pneumatic control with toggle lock
o   Wedge system on bottom platen provides nearly  150 tons of cutting pressure
o   Segen quick disconnects in each platen capable of 1000 lbs tool weight per platen
o   Shut height of 14” with a max stroke of 7 5/8”….open stop is adjustable close is not (7” of daylight for each platen
·        Controls
o   Allen Bradley PLC control system
o   15” touch screen as HMI operator interface
·        Guarding and interlocks at all critical areas
