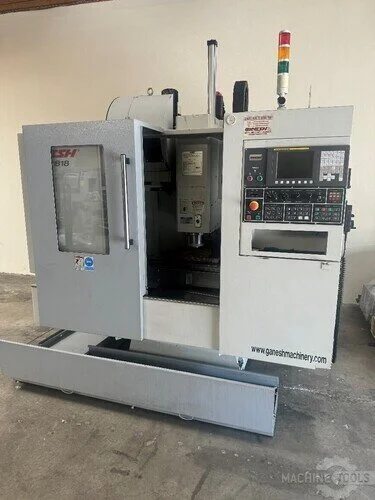

Used Vertical Machining Center. Used but well-maintained, with X/Y/Z travel of 27.95/17.716/18.11, 15.0 power, 12000 RPM, 24-tool ATC, CAT 40 taper, and table dimensions of 16.53 x 29.92.
| X | 27.95" | 709.93 mm |
| Y | 17.716" | 449.99 mm |
| Z | 18.11" | 459.99 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT # 40 | CAT # 40 |
| Table-W | 16.53" | 419.86 mm |
| Table-L | 29.92" | 759.97 mm |
| # Axis | 3 | 3 |
| Control | CNC (Mitsubishi) | CNC (Mitsubishi) |
| Weight | 10,582 pounds | 10,582 pounds |
97” x 91” x 101” (shipping dims) 86” x 81” x 113” (floor space)
300 PSI THRU TOOL COOLANT
CHIP CONVEYOR
MITSUBISHI M830 CNC CONTROL
24 STATION ATC
RUGGED ROLLER WAYS
DUAL CONTACT BIG PLUS SPINDLE
12,000 RPM DIRECT DRIVE SPINDLE
SPINDLE CHILLER
