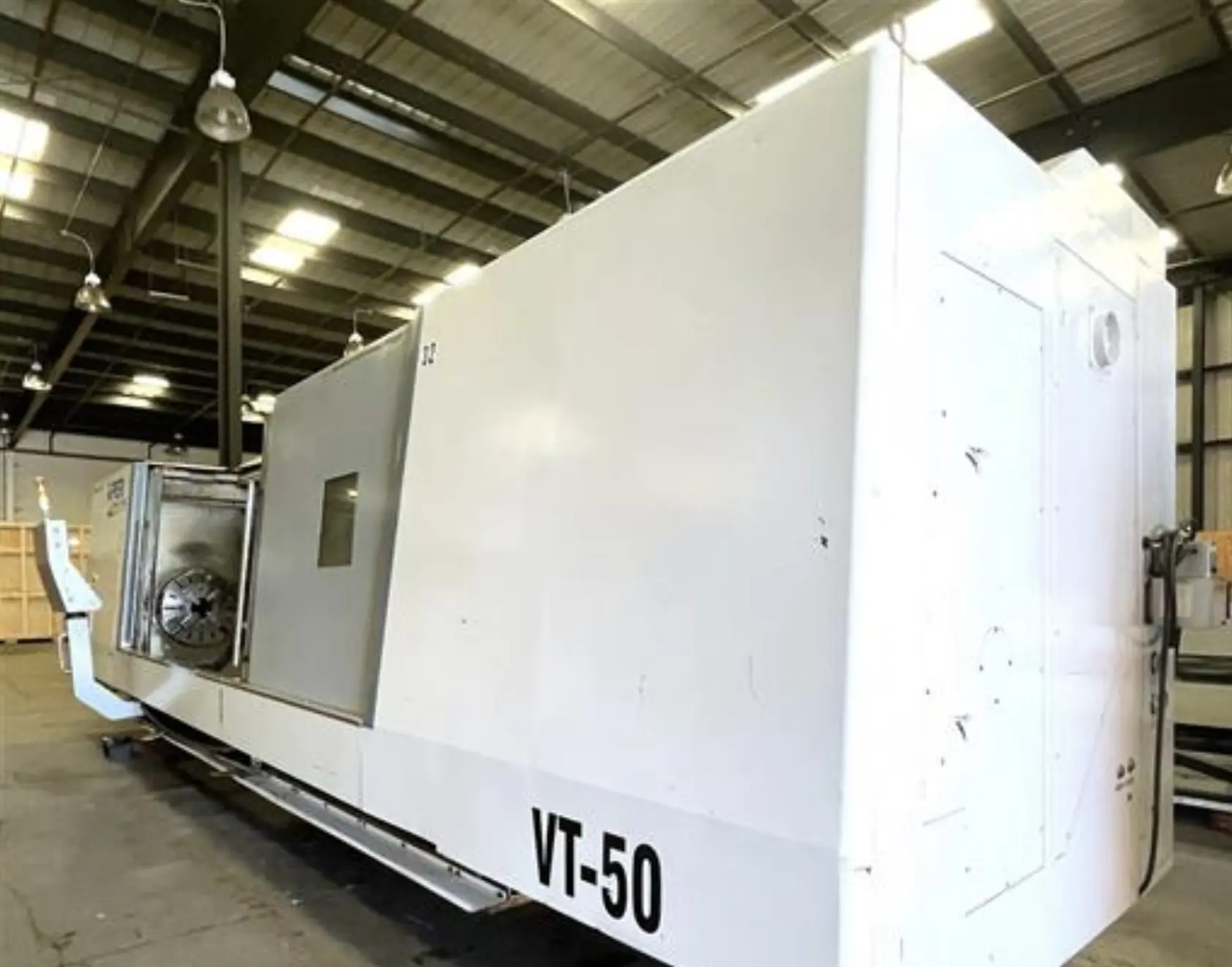

Used CNC Lathe. Features 39" swing, 157" machining length, 50 hp power, and max 750 RPM. Equipped with FANUC 21I-TB CNC control, 25” 4-jaw chuck, 9.25" spindle bore, gear headstock, and chip conveyor. 46,200 lbs.
| Swing | 39" | 990.6 mm |
| Machining Length | 157" | 3,987.8 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 750 RPM | 750 RPM |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Weight | 46,200 LBS | 46,200 LBS |
SWING OVER BED 39"
MAX. WORK DIAMETER 35"
DISTANCE BETWEEN CENTERS 157"
MAX TURNING LENGTH 155"
SPINDLE HOLE DIAMETER 9.25"
SPINDLE SPEED, 1-750 RPM
SPINDLE RANGES 2
SPINDLE NOSE A2-15
SPINDLE DRIVE MOTOR 50 HP
TAILSTOCK QUILL, TRAVEL 5.9"
TAILSTOCK QUILL DIAMETER 5.9"
TAILSTOCK QUIL, TAPER MT-6
MACHINE DIMENSIONS, W/ OUT CONVEYOR 292" X 111"
MACHINE DIMENSIONS, W/ CONVEYOR 347" X 111"
MACHINE HEIGHT 97"
APPROXIMATE WEIGHT 46,200 LBS
FANUC 21I-TB CNC CONTROL
25” 4-JAW CHUCK
9.25" SPINDLE BORE
12 POSITION TURRET
2-STEADY REST
GEAR HEADSTOCK
CHIP CONVEYOR
