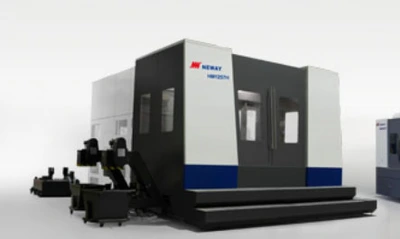

item HM805SH unit
size 800×800 mm
31.5×31.5 inch
max load 1600 kg
3528 lb
travel X/Y/Z 1050×900×900 mm
41.3×35.4×35.4 inch
rapid traverse X/Y/Z 30 m/min
motor power 18.5/22 Kw
spindlemax speed 4500 rpm
magazine capacity 32（chain type） pc
net weight 18000 kg
| X | 1,050 mm | 41.339" |
| Y | 900 mm | 35.433" |
| Z | 900 mm | 35.433" |
| RPM | 4,500 RPM | 4,500 RPM |
| Pallet-W | 800 mm | 31.496" |
| Pallet-L | 800 mm | 31.496" |
