- PREOWNED DAEWOO VERTICAL MACHINING CENTER, MODEL #: DMV4020, S/N: AV5D1816
| X | 40" | 1,016 mm |
| Y | 20" | 508 mm |
| Z | 24.6" | 624.84 mm |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 24 | 24 |
| Taper | CT40 | CT40 |
| Table-W | 19.5" | 495.3 mm |
| Table-L | 47.2" | 1,198.9 mm |
| # Axis | 3 | 3 |
| Dimensions | 125" x 98" x 113 | 125" x 98" x 113 |
| Weight | 16000 lbs | 16000 lbs |
Specs
CNC Control yes
Type of CNC Control Fanuc 21i-MB
# Axis 3
Table Size 19.5" x 47.25"
X-Axis Travel 40 inches
Y-Axis Travel 20 inches
Z-Axis Travel 24.6 inches
Spindle Speed 8,000 RPM
Spindle Taper CAT 40
Dimensions 125" x 98" x 113"
Weight 16000 pounds

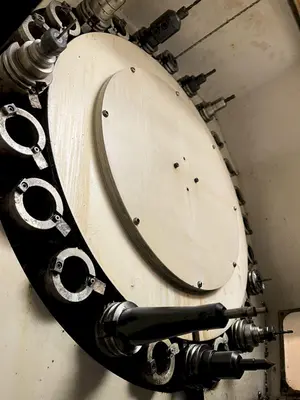

* 24-ACT

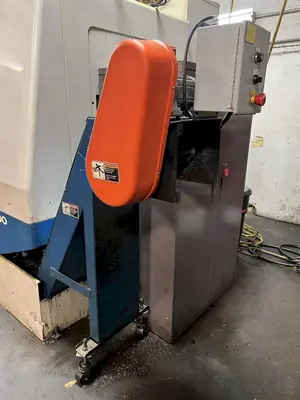

* Jorgenson Chip Conveyor
* Cool Blaster System
