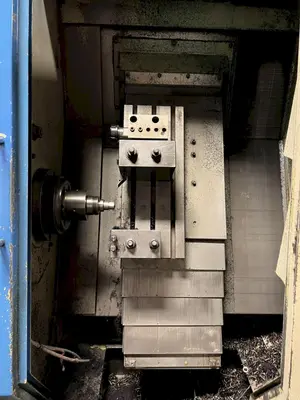

PREOWNED KIA TURNING CENTER, MODEL #: KIT30A
| Swing | 18.9" | 480.06 mm |
| Machining Length | 9.8" | 248.92 mm |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 1.5" | 38.1 mm |
| Power | 7.5 hp | 5.6 kW |
| Max RPM | 0 RPM | 0 RPM |
| Turning Dia | 5.9" | 149.86 mm |
| Tailstock | No | No |
| Dimensions | 84"L x 57"W x 66"H | 84"L x 57"W x 66"H |
| Weight | 6173 | 6173 |
Specs:
Max Swing Over Bed: 18.9 inches
Max Swing Over Cross Slide: 6.69 inches
Max Part Diameter: 5.9 inches
Max Part Length 7.9 inches
Standard Chuck Size 6 inches
Cross Travel (X-Axis) 9.8 inches
Longitudinal Travel (Z-Axis) 15.7 inches
Rapid Traverse Rate (X-Axis) 1,181 IPM
Rapid Traverse Rate (Y-Axis) 1,181 IPM
Type of Tool Support Gang
Gang Positions 8
Bar Capacity 1.5 inches
Spindle Speed Range (1 RPM Increments) 50-5,000 RPM
Spindle Horsepower 7.5 HP
Approximate Machine Dimensions 84" x 57" x 66"
Approximate Machine Weight 6173 pounds
Fanuc 0-T Control
Collet Chuck
