1 - NEW HEMSAW HORIZONTAL PIVOT BANDSAW, MODEL #: H90A-1
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
Spray Mist Lubrication: Spray mist lubrication system with a selector switch located on control console to select and to switch back and forth from flood coolant or spray mist lubrication. Price: $ 1,395.00

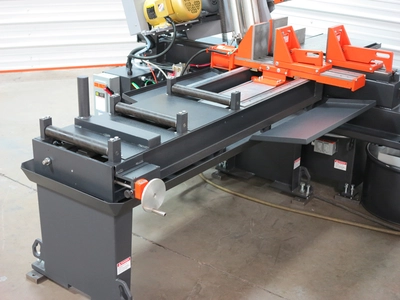

24” Solid Discharge Table: For handling of material after the cut. Price: $1,695.00
Reduced Capacity Top Clamps: Top Clamp for bundle cutting; Price: $2,195.00 Main Vise (Capacity 10” W x 9” H), Price: $2,195.00 – Feed Vise (Capacity 10” W x 9” H)
3rd Holding Vise: The third vise assures the positive alignment of the material. The vise works in conjunction with the main saw vise to provide additional clamping surface and may be disconnected if it is not needed through a “quick release” valve. It also permits the use of a pusher bar to reduce the remnant end. Price: $3,595.00

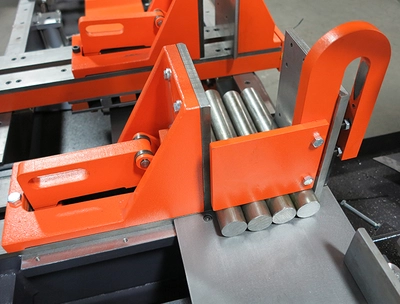

Interlocking Vise Jaws: The interlocking vises permit the feeding of the material for a minimum drop of 3.5”. They reduce the horizontal capacity by 1- 1/2” and can be removed to obtain full capacity. Price: $1,495.00
Light Clamping Pressure: Allows the machine to clamp thin wall tubing or other delicate materials with less clamping pressure reducing the possibility of deforming them. Price: $295.00
Single-Phase Voltage: Larger frequency drive is added to make voltage on saw single phase instead of 3-phase. Price: $795.00

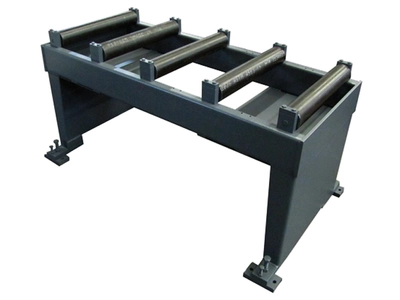

Stock Table: Heavy Duty roller table, 24” centers, non-coolant panned and adjustable to be “trued-in” with the saw. Roller table is designed to move even the large bars with ease and accuracy. Price: 5’ x 18” Idle - $2,595.00 10’ x 18” Idle - $3,995.00
DELIVERY:
SUBJECT TO STOCK
