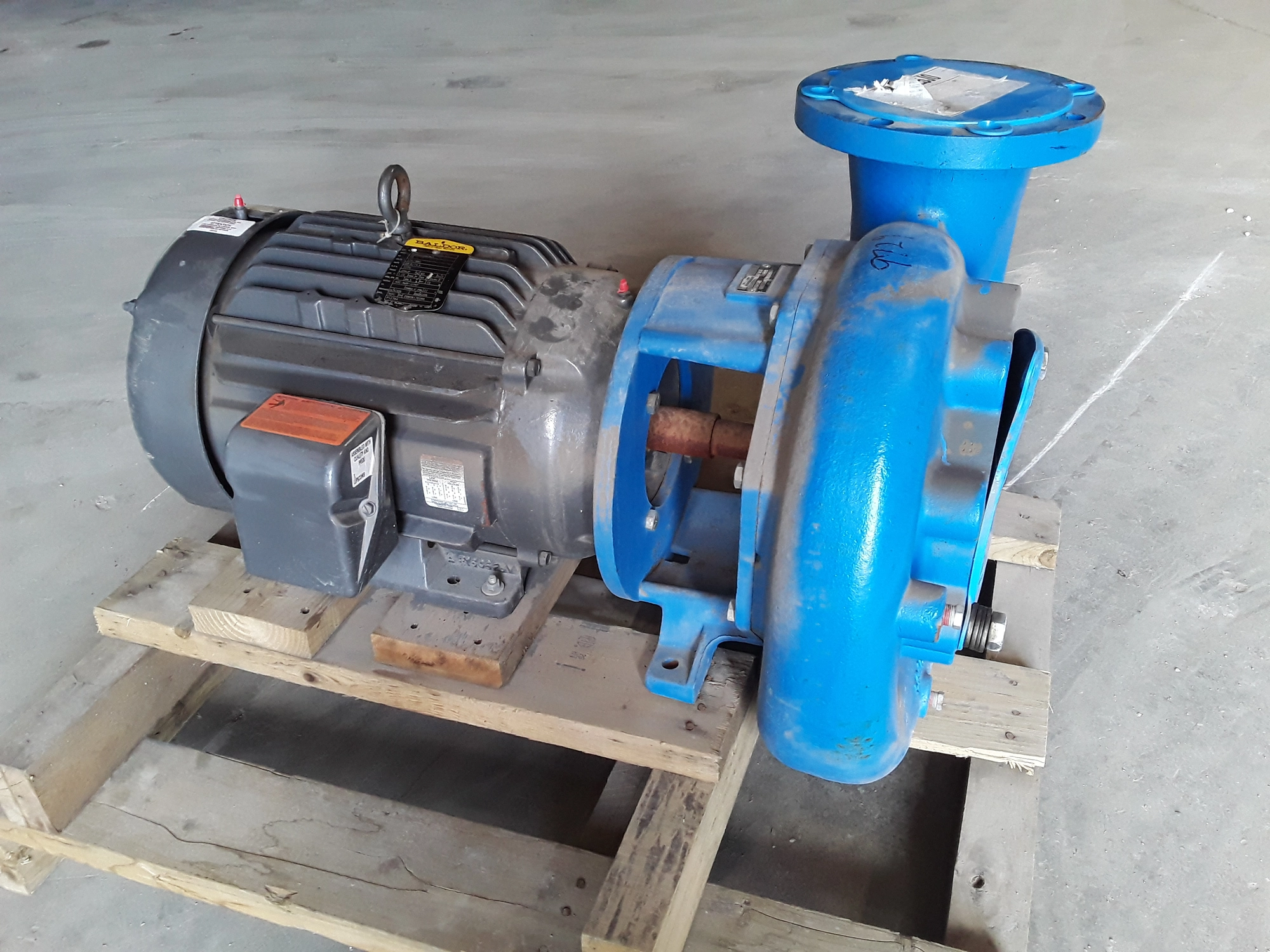

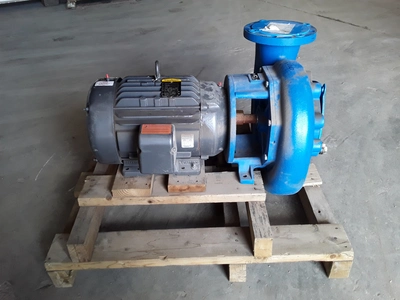

(1) PREOWNED GOULDS SINGLE END SUCTION WATER PUMP, MODEL #: 3656, S/N: J0677142, YEAR: 1977
SPECIFICATIONS:
INDEX ---------------- 18BF3L5JO
IMPELOR DIA. --------- 10 in
SIZE ----------------- 6 X 8-13
MOTOR ---------------- BALDOR MOTOR 10HP 230/460 3PH
RPM ------------------ 8O
FEATURES:
Residential, Commercial Cast Iron, Bronze Fitted, End-Suction Flanged Pumps G&L Series 3656/3756 M & L Group
Applications:
Booster service
Spraying systems
Irrigation
Water circulation
Liquid transfer
General purpose pumping
Features and Benefits:
Back pull-out to reduce maintenance down time.
Standard John Crane Type 21 mechanical seal for both reliability and availability. Carbon/ceramic/ BUNA standard, with other faces and elastomers available.
Available in all iron or bronze fitted construction for application versatility.
Replaceable wearing components include stainless steel shaft sleeve and casing and hub wear rings to maintain peak efficiency.
Enclosed impeller design, dynamic balancing and renewable wear rings reduce losses affecting performance and pump life.
125 lb. ANSI flange suction/discharge connections and casing rotation for piping connection versatility.
NPT threaded connections are supplied on 1 1/2 x 2 – 10 and 2 1/2 x 3 – 8 models.
Optional rigid carbon steel bedplate, sheet metal coupling guard and T. B. Woods spacer coupling for 3756 models.
EQUIPPED WITH:
CARBON CEREMAIC BUNA MECHANICAL SEAL
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATIONS
DELIVERY:
IMMEDIATE, SUBJECT TO PRIOR SALE
