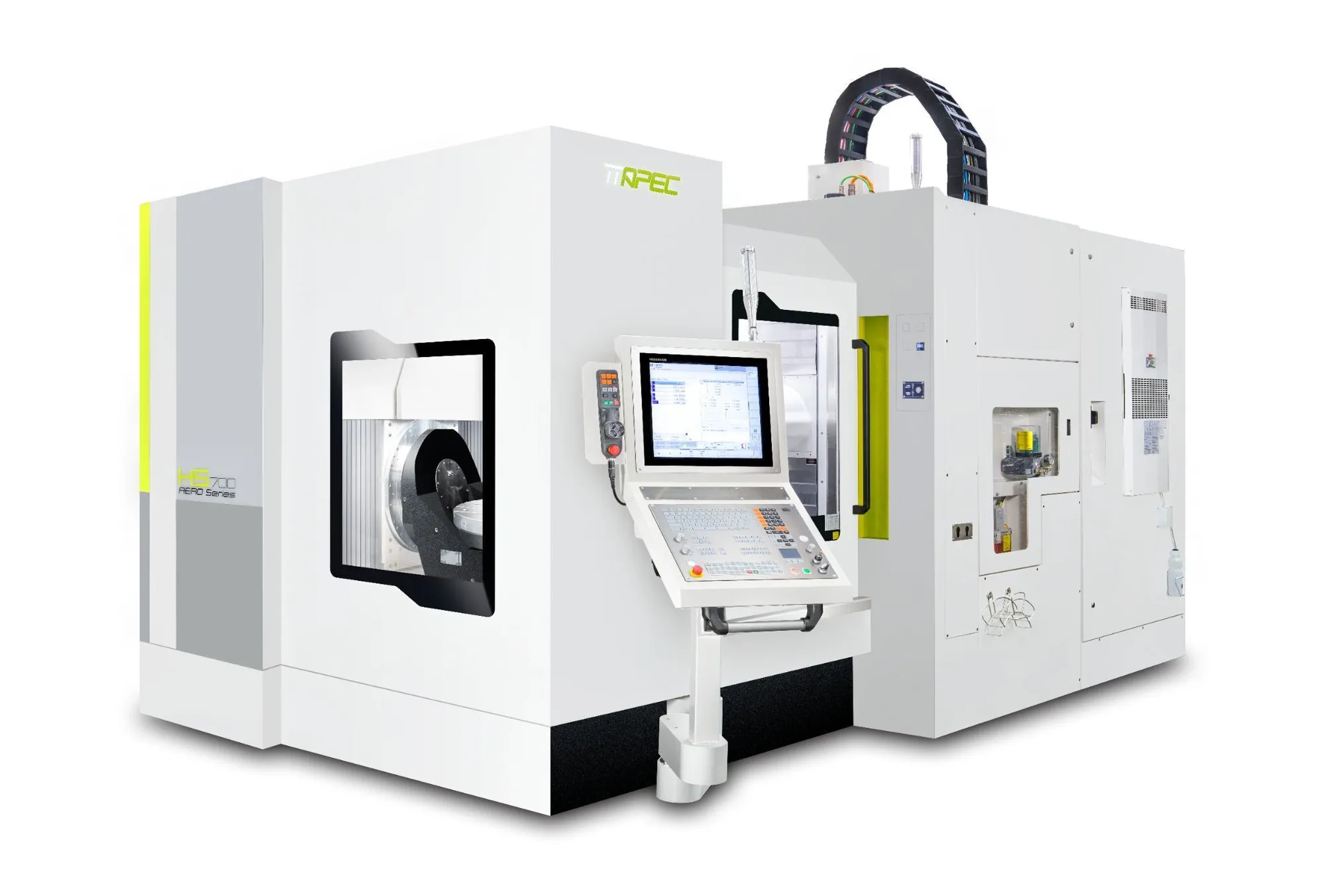

The APEC HS700 series is specially designed to conquer aerospace SuperAlloy processing challenges. Discover the power of high rigidity T-shaped structure design and high-speed ball screw-driven X/Y/Z axes, setting new standards in precision machining.
The APEC HS700 series is tailored to excel in aerospace SuperAlloy processing, delivering unmatched performance and precision in every cut. Featuring an inverted dual V-shaped rib structure in the basement design, the APEC HS700 series achieves the best force flow path. The X-axis travel is fully supported, ensuring zero gravitational dropping and deformation, thus guaranteeing workpiece and surface machining accuracy.
| X-axis travel | 710 mm | 27.953" |
| Y-Axis travel | 910 mm | 35.827" |
| Z-Axis travel | 810 mm | 31.89" |
| Table Size Diameter | 650 mm | 25.591" |
| Table Load Capacity | 350 kg | 771.6 lb |
| A-Axis Swivel | 135° | 135° |
| B/C-Axis Rotation | 360° | 360° |
| Spindle Speed | 20,000 RPM | 20,000 RPM |
| Spindle Taper | HSK A63 | HSK A63 |
| Tool Magazine Capacity | 32 | 32 |
| CN Control | HEIDENHAIN | HEIDENHAIN |
SPECIFICATION HS700
X-axis 27.95″
Y-axis 35.83″
Z-axis 31.89″
Feedrate XYZ=196.85 ft/min
Table size ( Diameter ) Ø25.59″
Max. processing diameter Ø27.56″
Max. table load 771.62 lbs.
Max. rotation angle A=-90°~135° C=±360°
Max. rotation speed A=70 C=80 rpm
Torque (S1/Max.) A=1,574/2,789 ft. lbs. C=495/892 ft. lbs.
Spindle taper HSK63A
Spindle speed 20,000 rpm
Spindle power (S1/Max.) 26.82/32.18 hp
Spindle torque (S1/Max.) 33.51/40.56 ft. lbs.
Tool shank 32T pcs
Max. tool length 15.75″
Max. tool diameter with adjacent tool Ø2.95″
Max. tool diameter without adjacent tool Ø5.12″
