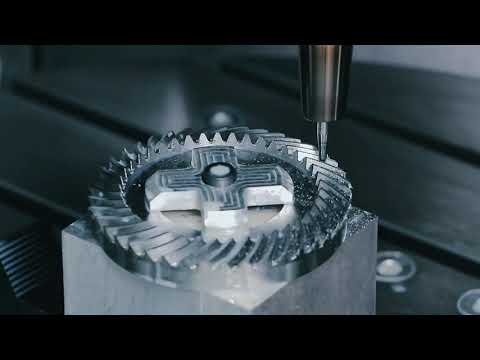

The APEC G-800 series is engineered for industries demanding precise and efficient five-axis simultaneous machining, including aerospace, mold, and automotive manufacturing. Its compact design, advanced features, and exceptional stability make it perfect for machining complex workpieces such as engine blisks, aluminum and titanium alloy structural parts, engine impellers and cases, as well as precision molds for car lamps and aerospace components.
Key Features:
• High-Speed Spindles: Options include 12,000 rpm (HSK100A), 15,000 rpm (HSK100A), 20,000 rpm (HSK63A), or 24,000 rpm (HSK63A) to suit diverse applications.
• Compact Gantry Design: Minimal footprint with optimal 3D space configuration for efficient operations.
• Precision Motion Control: X/Y/Z-axis powered by high-speed ball screws, with A/C-axis driven by direct drive motors for superior accuracy and smooth performance.
• Dynamic Stability: High-rigidity beam and triangular force flow design ensure structural stability and reduced vibration during machining.
• Advanced Accuracy: Heidenhain optical scales on all axes provide exceptional stability and protection from contaminants.
• Compact Trunnion Rotary Table: Features center of gravity drive and servo-driven design for better machining stability and shorter cycle times.
Discover financing options and take your manufacturing to the next level with MEGATEL CNC, your trusted partner for APEC machines.
| X-Axis Travel | 800 mm | 31.496" |
| Y-Axis Travel | 830 mm | 32.677" |
| Z-Axis Travel | 560 mm | 22.047" |
| Table Size-X | 800 mm | 31.496" |
| Table Size-Y | 800 mm | 31.496" |
| Table Load Capacity | 1.3 T | 1,179.3 kg |
| Spindle Speed | 15,000 RPM | 15,000 RPM |
| Spindle Taper | HSKA100 | HSKA100 |
| A-axis Swivel | 120° | 120° |
| C-axis Rotation | 360° | 360° |
| ATC | 32 | 32 |
| Max. Tool Length | 300 mm | 11.811" |
| Milling Head Type | Trunnion Style | Trunnion Style |
| Optional ATC | 32 | 32 |
| Control | CNC (Siemens 840D CNC Control) | CNC (Siemens 840D CNC Control) |
SIEMENS 840D CONTROL
15,000 RPM BUILT-IN SPINDLE, HSK100A (45/54 kW, 119/143 Nm)
ROTARY TILT TABLE WITH Ø800

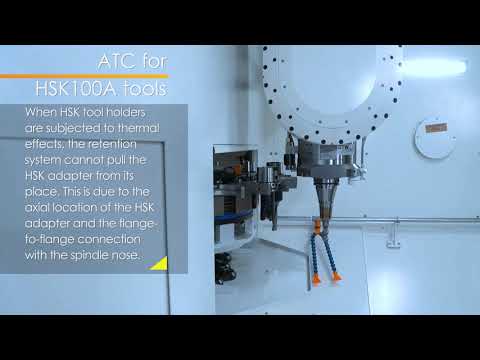

32 TOOLS ATC MAGAZINE
X/Y/Z-AXIS WITH HIGH RIGIDITY LINEAR GUIDEWAY
X/Y/Z -AXIS WITH HEIDENHAIN OPTICAL LINEAR/CIRCULAR SCALE
OIL-AIR LUBRICATION DEVICE FOR SPINDLE
SPINDLE CHILLER
A/C-AXIS COOLANT SYSTEM WITH TORQUE MOTOR
AIR CONDITIONER FOR ELECTRICAL CABINET
COOLANT AROUND SPINDLE
STANDARD COOLANT TANK
CHAIN-TYPE CONVEYOR SYSTEM
MANUAL OPENING / CLOSING OF TOP ROOF SLIDING COVER
3-AXIS GREASE LUBRICATION SYSTEM
Z-AXIS BRAKE SYSTEM
SECURITY DOOR INTERLOCKS
WATER-PROOF LED WORKING LAMP
BLUM TOOL MEASUREMENT SYSTEM
BLUM WORKPIECE TOUCH PROBE
HEIDENHAIN KINEMATIC OPT. CALIBRATION SYSTEM WITH CERAMIC BALL SET
BLUM LASER TOOL MEASUREMENT SYSTEM
20 BAR COOLANT TROUGH SPINDLE
SPINDLE AIR BLAST
