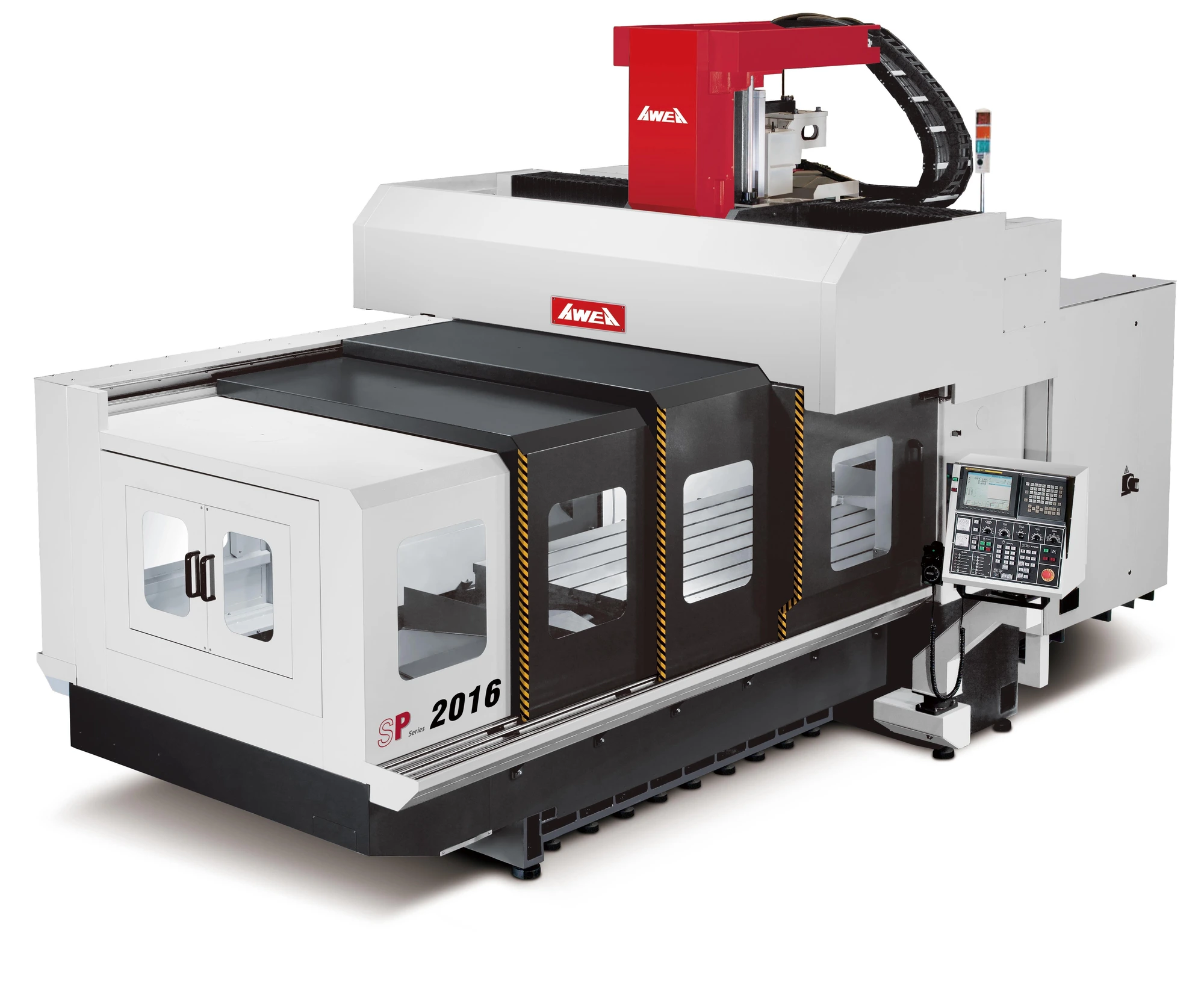

NEW AWEA SP-2016

Overview
Description

Representing AWEA’s “The royal family of bridge machines” of mature manufacturing abilities and advanced technology skills, the SP series bridge-type vertical machining centers combine strong spindle power and high rigidity structure along with high-quality automation equipment and a full product line to provide you with high efficiency, high productivity machining strategies; it can be broadly applied in the automotive, precision mold, aerospace and energy industries.

Key Highlights:

✔ The modular spindle design provides cutting flexibility for various working conditions.
✔ High-rigidity roller-type linear guideways on the X, and Y axes offer heavy-duty cutting, fast movement, and low abrasion capabilities.
✔ The Z-axis is adopted with a high rigidity box way which is hardened and precisely ground suitable for heavy-duty cutting conditions. ( Opt. : The Z-axis can be adopted with roller-type linear guideways if equipped with a high-speed direct drive spindle. )

Specifications
X-Axis Travel2,100 mm82.677"
Y-Axis Travel1,600 mm62.992"
Z-Axis Travel760 mm29.921"
Distance Between Column1,700 mm66.929"
Spindle Nose to Table Top960 mm37.795"
Table Size-X2,310 mm90.945"
Table Size-Y1,500 mm59.055"
Table Load Capacity8,000 kg17,637 lb
Standard Spindle TaperCAT50CAT50
Optional Spindle TaperCAT40CAT40
Standard Spindle Speed6,000 RPM6,000 RPM
Optional Spindle Speed4,000 | 8,000 | 10,000 | 12,000 | 15,000 RPM4,000 | 8,000 | 10,000 | 12,000 | 15,000 RPM
ATC3232
Optional ATC24 | 40 | 6024 | 40 | 60
# Axis33
CN ControlFanuc | Mitsubishi | Heidenhain | FagorFanuc | Mitsubishi | Heidenhain | Fagor
