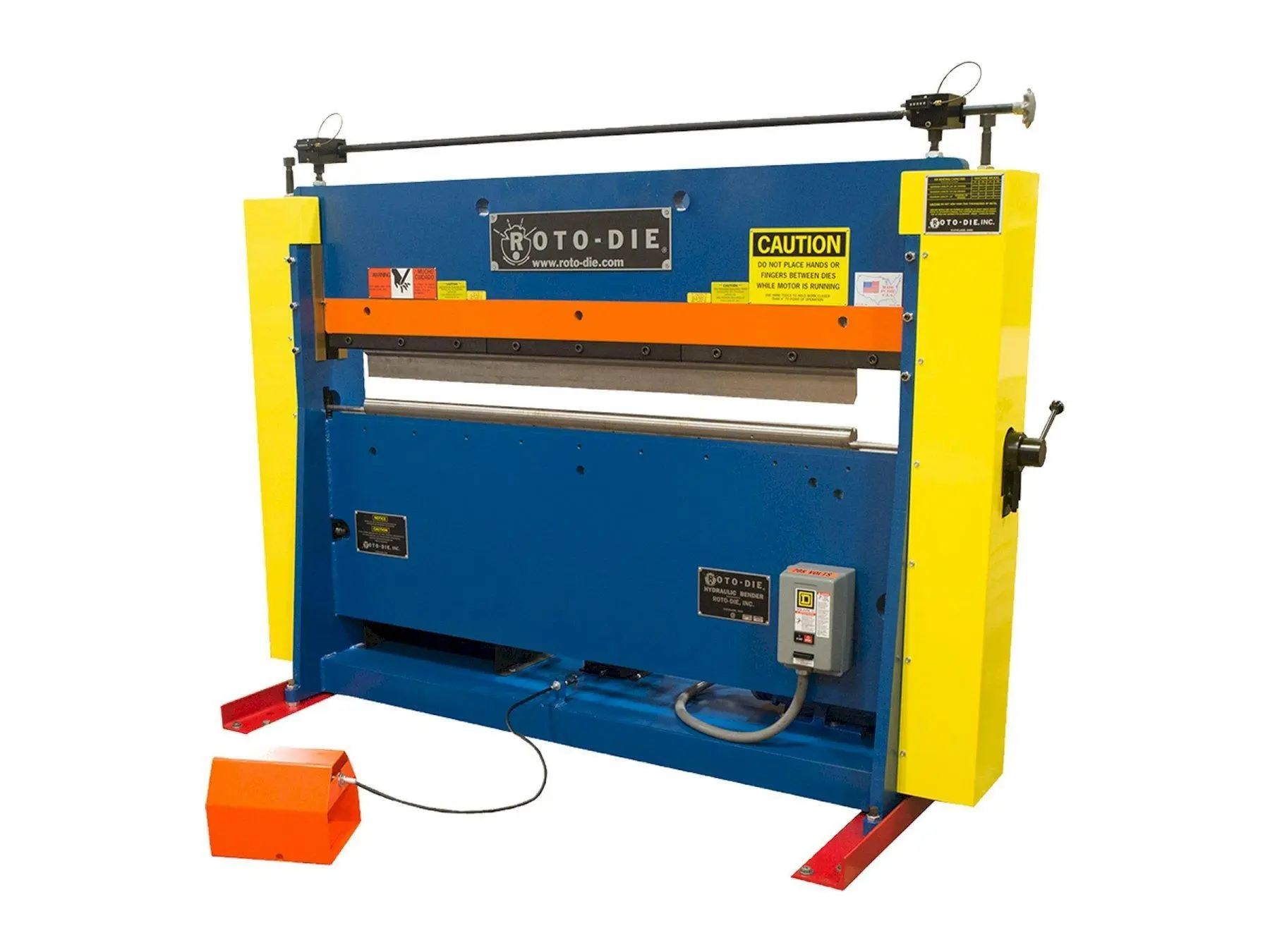

1 - NEW ROTO-DIE PRESS BRAKE, MODEL #: 10
EQUIPPED WITH:
TOOLING FOR 5 BASIC FORMING OPERATIONS:
1)NO. 37 ROTO-DIE: INCLUDING 7° CROSS-BRAKING GROOVE, 85° X 3/8" WIDE DIE OPENING, 85° X 7/8" WIDE DIE OPENING, AND 30° X 1/2" WIDE DIE OPENING.
2)NO. 24 HEMMING DIE (30°)
3)NO. 1 FORMING DIE (85°)
SHEET SUPPORT ARMS W/ CLIPS
GAUGING BLOCKS
DISAPPEARING SPRING-PIN GAUGES
DEPTH-OF-STROKE ADJUSTMENT
LENGTH-OF-STROKE ADJUSTMENT
OPTIONAL FEATURES:
GOOSENECK DIE ----------------------------- $5,200.00HEAVY GAUGE ANGLE INSERT DIE --------------------- $2,500.00TDC/TDF INSERT DIE ----------------------------------- $1,000.00SINGLE STATION DEPTH OF STROKE ADJUSTMENT SYSTEM ---------------------- $2,700.00BACK GAUGE, REAR OPERATED, MANUAL OPERATION --------------------- $3,800.00BACK GAUGE, FRONT OPERATED, MANUAL OPERATION -------------------- $5,400.00
