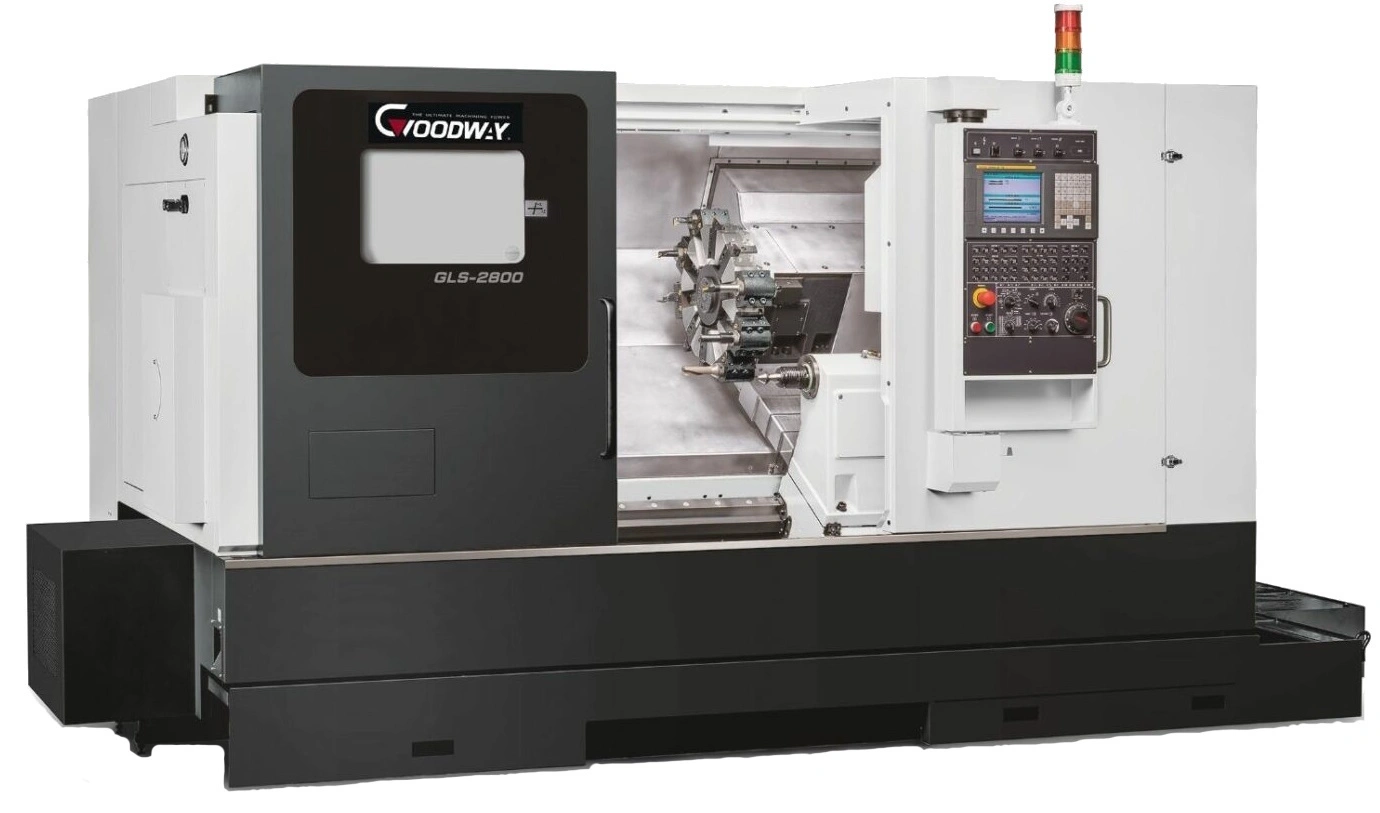

NEW GOODWAY GLS-2800/FGR8065

Overview
Manufacturer:
GOODWAY
Status:
For Sale
Description

With the latest machine tools technology and precision turning performance, GOODWAY brings you the new GLS series high-speed CNC turning center. Using 2 types of beds combined with super rigidity, high-speed turning capability, and compact size provides you with super-efficiency cutting power. The GLS series equipped with an optional live tooling turret, Y-axis, and sub-spindle can work on turning, milling, and drilling tasks at the same time to increase the output capacity with high-end value to meet your needs of today and tomorrow.

Key Features:

• 30˚ slant-bed design provides smooth chip disposal and easier operator access.
• Steel way covers and special steel wipers molded with industrial-strength rubber are used for durability.
• Fully enclosed splash guards keep chips and coolant contained for a safe clean working environment.
The auto lubrication system delivers metered amounts of lubrication to the slideways, ball screws, and vital components. Distribution is automatically shut off during idling to prevent waste.

Specifications
Max Swing Diameter760 mm29.921"
Swing Over Saddle440 mm17.323"
Max Turning Diameter440 mm17.323"
Max Turning Length720 mm28.347"
Standard Chuck Size10"254 mm
Standard Bar Capacity78 mm3.0709"
Spindle NoseA2-8A2-8
X/Z Axis Rapid30 m/min30 m/min
Spindle Speed3,500 RPM3,500 RPM
Motor Output15 kW20.1 hp
CN ControlFAGOR 8065 w/ 15" LCDFAGOR 8065 w/ 15" LCD
Weight6,000 kg6,000 kg

**Please refer to the attached brochure for the complete specification of the machine.

Equipped With

FAGOR 8065 WITH 15” LCD SCREEN
10" TAIWAN-MADE 3-JAW CHUCK BIG BORE (78MM BAR CAPACITY)
1 SET OF HARD AND SOFT JAWS
CHIP CONVEYOR 1200 MM HEIGHT
HPMA AUTO TOOL SETTER (RENISHAW)
PARTS CATCHER WITH COLLECTING BOX
OIL SKIMMER
HYDRAULIC TYPE LP-1 PROGRAMMABLE TAILSTOCK (LIVE CENTER MT4)
12-STATION STANDARD LIVE TURRET WITH TOOL HOLDER PACKAGE
COOLANT SYSTEM
HIGH-INTENSITY WORK LIGHT
SHIELD COVER
AUTO. LUBRICATION
ELECTRICAL CABINET HEAT EXCHANGER
CYCLE STOP ALARM LIGHT
MTH2-30 COOLANT PUMP
C-AXIS WITH DISK BRAKE ON MAIN SPINDLE
SPINDLE ORIENTATION
BAR FEEDER INTERFACE
