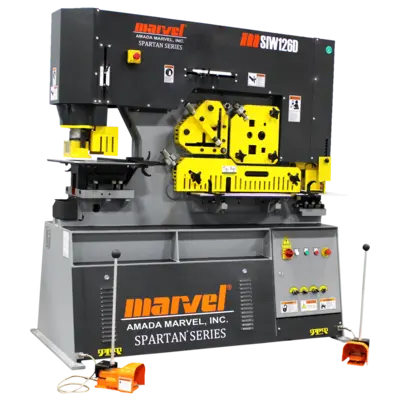

NEW MARVEL MSIW126D

Strongest LED Lighting & Best Stripper in the Industry

• Heavy-Duty
• Dual Cylinder
• Completely Integrated
• 126 Ton Capacity
• 15 H.P.
• D 14” Throat
• DX 24″ Throat
• 5 Work Stations
• Simultaneous Dual Operation

FEATURES
• Five (5) Sets of Punches & Dies
- Punches: 9/16″, 11/16″, 13/16″, 15/16″, 1-1/16″
- Dies: 19/32″, 23/32″, 27/32″, 31/32″, 1-3/32″
• LED Lighting at all Work Stations
• Adjustable Electric Back Gauge (36″)
• Scrap Boxes at Punching & Notching Stations
• Adjustable Stroke Depth at Punch
• Two (2) Full-Control Foot Pedals
• Two (2) Hold Die Holders
• Two (2) Piece Gauging Table at Punch Station
• Keyed Punch Holder for Shaped Tooling

Work Stations 5

Punching:
Punching Pressure 126 Tons
Standard Tooling 1-1/2″ x 1″
Large Tooling 2″ x 3/4″
*Oversize Tooling 4-5/16″ x 5/16″
Throat Depth D: 14″
DX: 24″
Stroke Length 3-1/8″
Cycle/Min. (3/4″) 25
Work Height 43-3/4″

Flat Bar Shearing:
Capacity 14″ x 1″
Width & Thickness 24″ x 9/16″
Blade Length 24″
Angle Flange Trim 5″ x 5/8″
Work Height 37″

Angle Shear
90° 6″ x 6″ x 5/8″
45° 3″ x 3″ x 3/8″
Work Height 48″

Bar Shearing:
Round Bar 2″
Square Bar 2″ x 2″
**Channel Shear 7″
**H Beams 7″
**T Beams 5″ x 1/2″
Work Height 37″

Notching:
Rectangular Notcher 2-38″ x 4″ x 1/2″
**Large V 4″ x 4″ x 1/2″
Work Height 37″

Special Tooling:
Single V Bending Attachment 10″ with 3″ wide V
Multi V Bending Attachment 27-1/2″ with 1/2″, 3/4″, 1″, 1-1/4″ wide V

**With special tooling only. (Measurements converted from metric units and may not be exact.)

***All specifications are based on 65,000 PSI tensile strength material.
