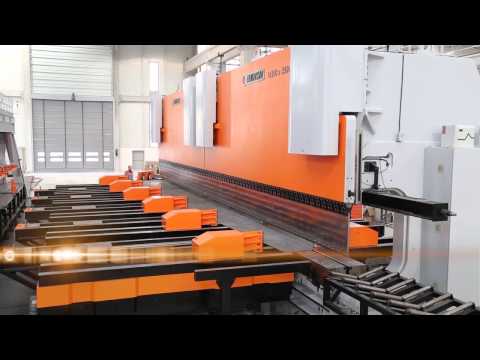

Rock 17, TOUCH SCREEN CNC CONTROLLER
TOTAL OF 6 AXIS (Y1, Y2, X, R,Z1, Z2) X:800 MM, R=250MM
ERMAKSAN FOUR AXIS BACKGAUGE (X, R, Z1, Z2)
AMERICAN PROMECAM QUICK RELEASE

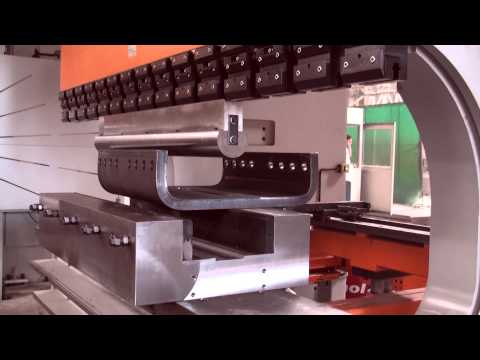

ROLLERI TOP TOOL ROLLERI - 0813/011/11
M460-R 4 V BOTTOM TOOL
275 (10,8”) MM HIGH STROKE
410 (16”) MM THROAT DEPTH
230 or 460 VOLTAGE, 3PH, 60HZ
BACK SIDE SAFETY – LIGHT BARRIER
SIDE GUARDS WITH SWITCH
DOUBLE FOOT PEDAL CONTROLLER
HOERBIGER HYDRAULIC SYSTEM
SIEMENS ELECTRIC SYSTEM
SLIDING FRONT SUPPORT ARMS
STANDARD NARROW TABLE
RAL 7035, RAL 2008 COLORS
ENGLISH LABEL
ENGLISH MANUAL
| Tonnage | 242 T | 219.539 t |
| Type | HYD | HYD |
| Overall Length | 148" | 3.8 m |
| Between Housings | 128" | 3.3 m |
| Stroke | 10.8" | 274.32 mm |
| # Axis | 6 | 6 |
| Control | CNC (Rock 17) | CNC (Rock 17) |
| Dimensions | 200.8” x 8.7” x 114.2” | 200.8” x 8.7” x 114.2” |
| Weight | 28,224 lbs. | 28,224 lbs. |
BENDING LENGTH - 148”
MAX. POWER - 242 US TONS
MAX. BENDING CAPACITY (59748 psi) - 0.31”
AXIS NUMBER OF MACHINE - Y1, Y2, X, R, Z1, Z2
FREE DOWN SPEED - 7.1 in/s
BENDING SPEED - 0.4 in/s
RETURN BACK SPEED - 7.3 in/s
STROKE ( C ) (Y1, Y2) - 10.8”
BACK GAUGE STROKE (X AXIS) - 31.5”
BACK GAUGE STROKE (R AXIS) - 9.8”
DISTANCE BETWEEN HOUSING (B) - 128”
CROWING - MOTORIZED
THROAT DEPTH (E) - 16.1”
TABLE HEIGHT (F) - 35.4”
TABLE WIDTH (G) - 6.3”
DAYLIGHT (D) - 21.7”
PLANT VOLTAGE - 230 or 460V
IP - 54
MAIN MOTOR - 25 HP
BACK GAUGE MOTORS (X,R) - 2x2,4+2x1,27 Nm
PLANT TEMPERATURE - 0-50 oC
MAX. NOISE - 70 dB
OIL CAPACITY - 79.3 US Gallons
MAX. PRESSURE - 4205 psi
MACHINE LENGTH (L) - 200.8”
MACHINE WIDTH (W) - 8.7”
MACHINE HEIGHT (H) - 114.2”
WEIGHT - 28224
*WORKING SPEED MUST BE MAX. 10 mm / sec. AT CE
CERTIFIED MACHINES ACCORDING TO THE EN12622 NORM.
