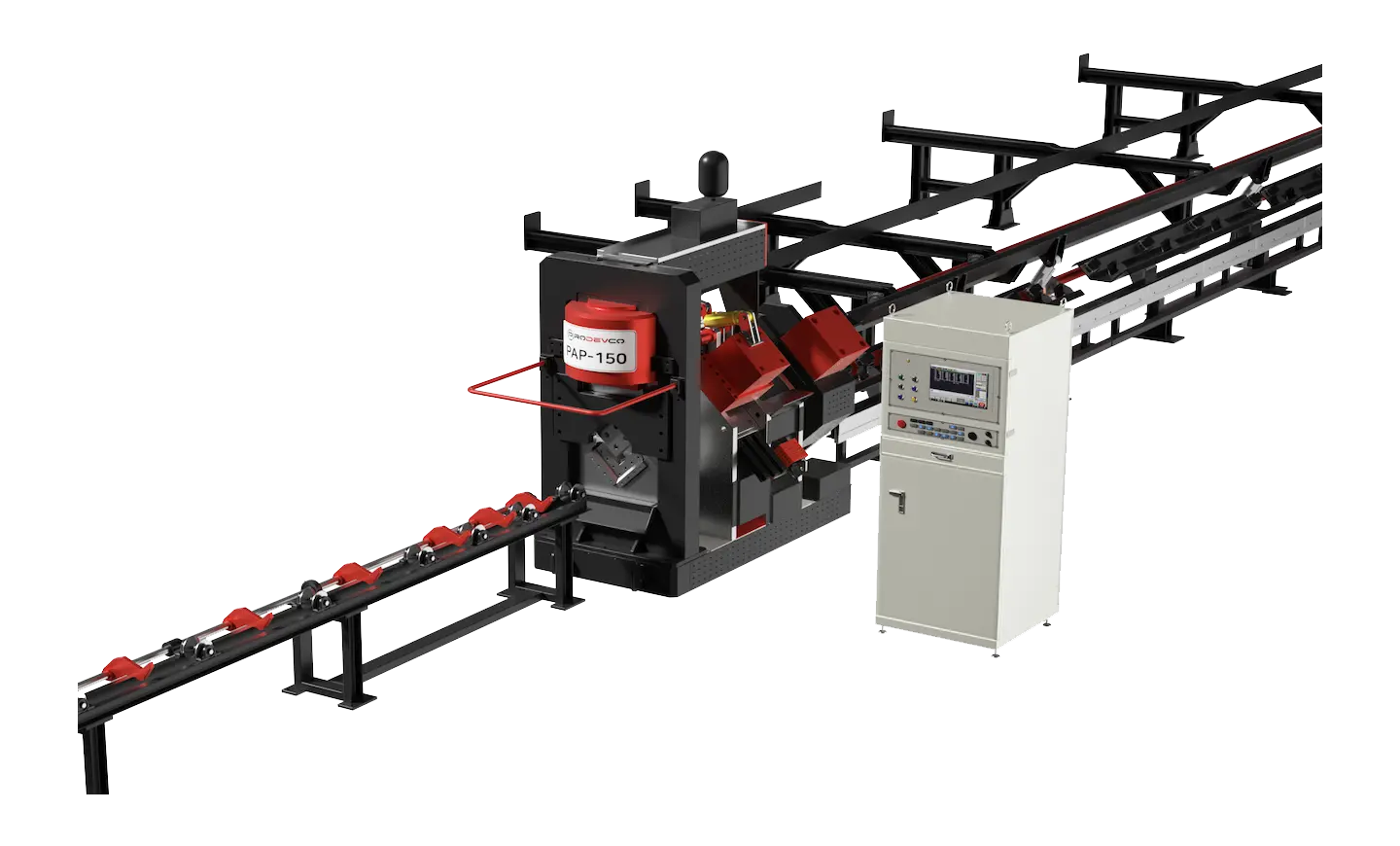

The PAP 150 Angle Processing Line offers a complete material handling and processing solution
The main features include:
• Auto tool change system is available for various holes processing
• Automatic processing of Marking, punching & shearing by hydraulic system
• Fast and precise material feeding by servo system - Carriage type
• Auto load and unload feature
• Window OS system for easy data load
• Single cut shear, no kerf
| Dimensions | (W*L*H): 66″x102″x85″/1680x2600x2150mm | (W*L*H): 66″x102″x85″/1680x2600x2150mm |
| Weight | 20,000lb/9,100kg | 20,000lb/9,100kg |
Max. Punch Limit capacity: 100 ton
Max. Processing capacity: 2″x2″x1/8″/50x50x4mm ~ 6″x6″x1/2″/150x150x15mm
Max. Punching capacity: 01″x1/2″/026x15mm
Processing data entry: Common Patterns Available
Tool change: ATC(Auto tool change) 3 set per axis
Max Shear Unit capacity: 220 ton (Single cut)
Shearing capacity: 2″x2″x1/8″/50x50x4mm ~ 6″x6″x1/2″/150x150x15mm
In & out feeding & Supply type(Option): IN: Automatic(Chain&Block Type) & Arm Supply Type Out: Automatic(Cylinder&Arm Type)
Dimension(W*L*H): 66″x102″x85″/1680x2600x2150mm
Weight: 20,000lb/9,100kg
Option: Marking system, Auto nesting program
