| Swing | 42" | 1,066.8 mm |

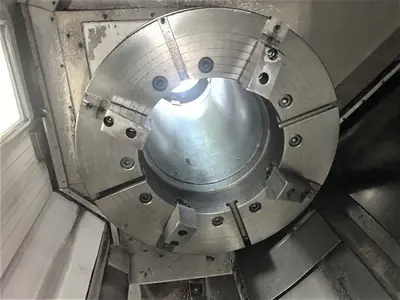

| Chuck Size | 40" | 1,016 mm |
| Bar Capacity | 22" | 558.8 mm |
| Max RPM | 300 RPM | 300 RPM |
| Turning Dia | 33" | 838.2 mm |
| Tailstock | No | No |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Mazatrol Fusion 640T CNC Control) | CNC (Mazatrol Fusion 640T CNC Control) |
| Dimensions | 245" x 116" x 122" | 245" x 116" x 122" |
| Weight | 42,000 lbs | 42,000 lbs |
Specifications (subject to buyer verification):
Swing Over Carriage: 42"
X-Axis Travel: 10.5"
Z-Axis Travel: 77.92"
Maximum Cutting Length: 77.92"
Maximum Cutting Capacity KN/LBF: 2,640
Main Spindle Motor: 80 HP
Bed Type Slideway Width: 45 Slant Type 41.34"
X-Axis Slideway Width: 21.65” Rectangle 60 Deg Inclination
Z-Axis Slideway Width: 20.67" Rectangle
Spindle Bore: 20.75"
Spindle Center Height: 21.76"
Number of Spindle Gears: 2
2-Step Gear Shift Hyd. Speed: 300 RPM
Machine Dimensions: 245" x 116" x 122"
Machine Weight: 42,000 lbs
Equipped With (subject to buyer verification):
Mazatrol Fusion 640T CNC Control
Re-threading
Rear Mount Chuck Adapter
High Power Coolant 1.1KW/93 PSI/7.9 GPM
Chip Conveyor
Coolant Tank
