| Swing | 35.4" | 899.16 mm |
| Chuck Size | 27.5" | 698.5 mm |
| Max RPM | 700 RPM | 700 RPM |
| Dimensions | 212" x 102" x 84" | 212" x 102" x 84" |
| Weight | 24,000 lbs | 24,000 lbs |
Specifications (subject to buyer verification):
Swing Over Bed: 35.433"
Center Height: 17.7"
Swing Over Cross Slide: 20.866"
Width of Bed: 23.6"
X-Axis Travel: 23.2"
Z-Axis Travel: 118.11"
Distance Between Centers: 118"
Spindle Bore: 10.433"
Main Drive Power Motor: 63/50 HP
Speed (2) Ranges: 1-180 RPM / 1-700 RPM
Inch Threads (40): 112-1/64 TPI
Metric Threads: 0.1 ~ 2,000 mm
Tailstock Center: MT#6
Tailstock Quill Diameter: 5.51”
Tailstock Quill Stroke: 11.81"
Machine Dimensions: 212" x 102" x 84"
Machine Weight: 24,000 lbs
Equipped With (subject to buyer verification):

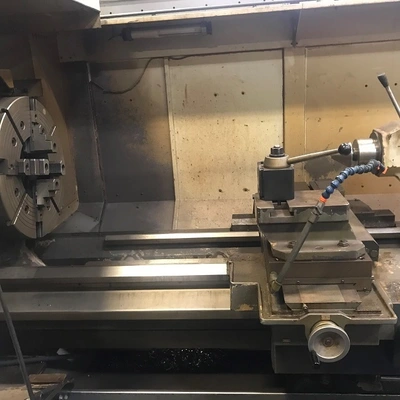

Front and Rear 28" 4 Jaws Chucks
