| X | 22" | 558.8 mm |
| Y | 20" | 508 mm |
| Z | 20" | 508 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT-40 | CAT-40 |
| Pallet-W | 15.7" | 398.78 mm |
| Pallet-L | 15.7" | 398.78 mm |
| Control | CNC (MAZATROL M-Plus) | CNC (MAZATROL M-Plus) |
| Dimensions | 89" x 140" x 90" | 89" x 140" x 90" |
| Weight | 15,000 lbs | 15,000 lbs |
Specifications (subject to buyer verification):
X Axis Travel: 22.05"
Y Axis Travel: 20.08"
Z Axis Travel: 20.08"
Pallet Size: 15.75" x 15.75""
Maximum Pallet Load: 660 lbs
Spindle Speed: 10,000 RPM
Spindle Motor: 15 HP
Spindle Taper: 40 CT
Tool Changer: 30 ATC
Dimensions: 89" x 140" x 90"
Weight: 15,000 lbs
Equipped With (subject to buyer verification):
Chip Conveyor
Programmable Coolant

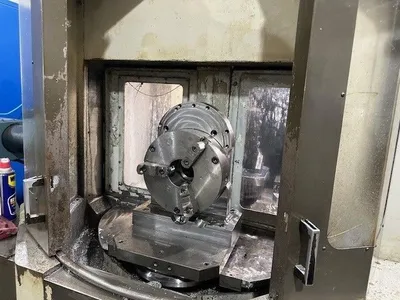

360 Deg. Indexing Table
Mazatrol M-Plus Control
