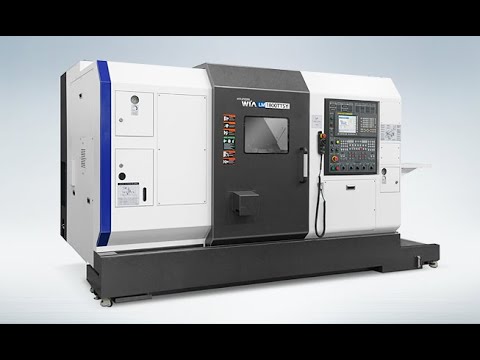

The LM1800TTSY features a 45° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guide ways adopted X & Y axis, and roller guideway (Z axis) offer improved rigidity due to the increase surface contact with the guideway and can applicable for a variety of applications. HYUNDAI WIA’s advanced technological features to provide exceptional value.
| CHUCK SIZE | 8" | 203.2 mm |
| BAR CAPACITY | 2.6" | 66.04 mm |
| SWING | 11.4" | 289.56 mm |
| TURNING DIAMETER | 9.1" | 231.14 mm |
| TURNING LENGTH | 26.5" | 673.1 mm |
| POWER | 30 hp | 22.4 kW |
| RPM | 5,000 RPM | 5,000 RPM |
| SUB-SPINDLE | Yes | Yes |
| TAILSTOCK | No | No |
| Control | CNC | CNC |
SPECIFICATIONS
CAPACITY:
Swing over bed Ø11.4”
Swing over carriage Ø11.4”
Maximum turning diameter Ø9.1”
Maximum turning length 26.5”
Bar Capacity (Main/ Sub) Ø2.6”
MAIN and SUB SPINDLE:
Chuck size 8”
Spindle bore Ø3”
Spindle speed 5,000 rpm
Spindle nose A2-6
A.C. Spindle Motor (30 min. rating) 30 HP
Maximum spindle torque (30 min. rating) 264lbf-ft
TRAVEL:
X1/ X2 axis travel 6.5” / 7.7”
Z1/ Z2 axis travel 27.6" / 28.3"
Y axis travel 3.9"
ZB axis travel 26.3"
X1/ X2 axis rapid traverse rate 787 IPM
Z1/ Z2 axis axis rapid traverse rate 1,575 IPM
Y axis rapid traverse rate 295 IPM
ZB axis rapid traverse rate 1,575 IPM
X / Y /Z /ZB basis ball screw diameter Ø 1.26”
X1 /X2 /Y axis guideway span 10.2"
Z1 /Z2 / ZB axis guideway span 15" / 13” / 15”

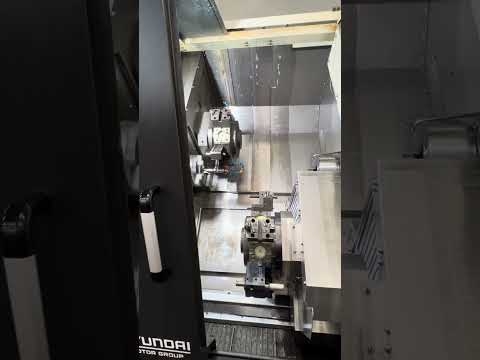

TURRET (BMT55P)
Number of tools 12
Turning tool shank size 0.8”
Boring bar diameter Ø 1.3”
Turret index time (1 step) 0.15 sec
Turret clamping force 9,790 lbs.
COOLANT and HYDRAULIC SYSTEM:
Coolant tank capacity 71 gal
Hydraulic tank capacity and required oil 5.3 gal / VG32 or CB32
Lubrication tank capacity and required oil 1.1 gal / G68
GENERAL:
Machine Height 82.2”
Floor Space (L) with chip conveyor 180.6”
Floor Space (W) 78.7”
Approximate machine weight 18,739 lbs.
Power required 49 kVA / 129 amp @ 220V
Voltage Required 205 - 235 Volts / 3 Phase
Specifications are subject to change for improvement without notice.
• Fanuc 31i-B controller
• 5,000 RPM main and sub spindle
• Powerful 29.5HP (22kW) built in spindles
• Spindle orientation

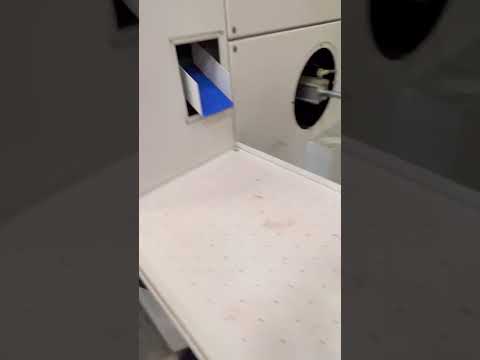

• Programmable sub spindle part ejector
• Programmable part unloader system
• 87 PSI multi-stage coolant pump
• Double Pre-Tensioned Ball screws
• Fast 787 IPM (20m/min) X, 1,575 IPM (40m/min) Z & ZB, and 295 IPM (7.5m/min) Y axis rapid traverse
• Right Side Hinge Type Chip Conveyor (47” discharge height)
• 3 color tower signal
• LNS bar feeder interface
• Rigid tapping
• 79.3 Gal (300 ℓ) Coolant Tank
• Standard Hyd. Unit - 35Bar (507 psi) / 5.3 Gal(20 ℓ) Tank
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts and 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
SPECIFICATIONS ARE ESTIMATE ONLY
