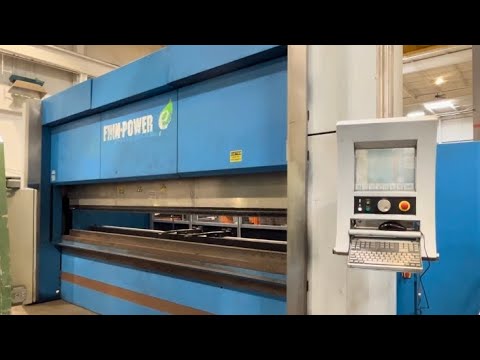

FINN POWER Electric Press Brake Model 200-4100 TS 3 F CNC, 200 Ton x 144" BH, 5 axis BG (X,R,Z1,Z2,X1)
| Tonnage | 200 T | 181.437 t |
| Type | ELE | ELE |
| Overall Length | 161" | 4.1 m |
| Between Housings | 144" | 3.7 m |
| Stroke | 11.8" | 299.72 mm |
| # Axis | 4 | 4 |
| Control | CNC (FINN POWER) | CNC (FINN POWER) |
| Dimensions | 81” x 210” x 115” | 81” x 210” x 115” |
| Weight | 37,000 lbs. | 37,000 lbs. |
SPECIFICATIONS
SIZE 200 Ton x 14'
TONNAGE 200 T
TYPE ELECTRIC
OVERALL LENGTH 161"
BETWEEN HOUSINGS 144"
STROKE 11.8"
# AXIS 4
CONTROL CNC (Finn Power)
APPROACH SPEED 77 MM/SEC.
BENDING SPEED 11 MM/SEC.
DIMENSIONS 81” x 210” x 115”
WEIGHT 37,000 lbs.
Windows Based Controls, TS3 7-axis cnc control, (5) axis back gauge (X,R,Z1,Z2,X1),
The TS3 control has 2D and 3D programming capability. 2D and 3D Programming Capability: Control Keyboard
DELEM Vbend Offline Programming Software: Graphically Programmed Bending Order
The bending order can be graphically programmed at the press brake along with all program preparation. A keyboard
is included in the optional TS3 control for easy alpha-numeric input. This is a good
combination with DELEM Vbend offline programming software.
Upper ram is set up for American style WILA dies.
