NEW 2025 MECO MEC 90 Premium

2025 Model MEC- 90 Premium, w/ Std Accuracy, MitzCNC & Upper Guide System, 22.6" Z axis stroke
MECO has sold more than 500 units in 30 countries and has improved its keyseaters to levels of efficiency, speed, and precision that place them at the forefront of the world, among the largest manufacturers of powerful multinational industrial groups.

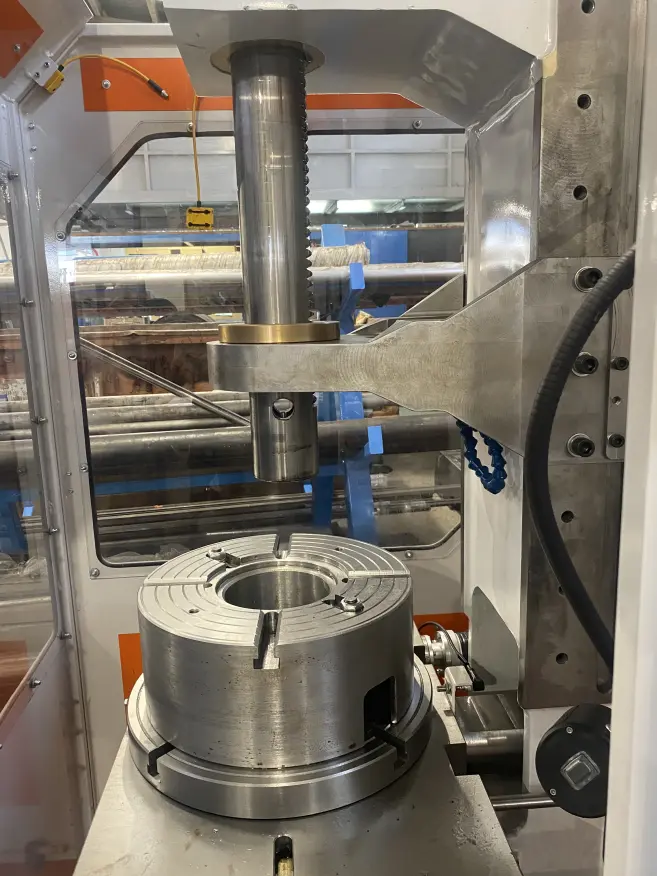

Nowadays, MECO keyseaters remain faithful to their original architecture and design: a‘C’-shaped body made out of an iron cast part, a robust shaft, and a cobalt tool guiding the notching dimensions throughout the process: ingenuity, simplicity, effectiveness, economy, and strength. MECO keyseaters are designed, built and developed with ingenuity and passion.
The incorporation of the most innovative mechanical and electronic technologies makes MECO keyseaters the most versatile, precise, and reliable metal-cutting machines. MECO’s touch screens simplicity and own software brings perfect notching within the reach of even the most modest workshop. It also offers high productivity (for its speed, ergonomics, and simplicity in the entire process) and unrivaled profitability.

Y-Axis
- Maxcimum speed Y-axis 500 mm.min
- Y-Axis Stroke (plus) + 110 mm 4.33"
- Y-axis stroke (minus) - 90 mm 3.54"
- Y-Axis Motor Power - 500 W
- Positional Accuracy - +/- 0.03 mm
- Repeatability - +/- 0.05 mm
Z-Axis
- Maxcimum speed Z-axis 10 m/min
- Z-Axis Stroke - 500 mm 19.69"
- Z-axis Motor - 2.0 KW
- Positional Accuracy - +/- 0.03 mm
- Repeatability - +/- 0.05 mm
C-Axis
- Maxcimum speed C-axis - 10 RPM/min
- Degrees of W-Axis rotation - 360 degrees
- C-Axis Motor Power - 500 W
- Standard Positional Accuracy - +/- 110 arcsec.
- Standard Repeatability - +/- 140 arcsec.
- Positioning Accuracy - high accuracy +/- 10 arcsec.
- Standard Repeatability - high accuracy +/- 20 arcsec.
W-Axis
- Maxcimum rotation speed W-axis - 10 RPM
- Divider Plate Dimensions (W) - 500 mm 19.69"
- W-Axis Motor Power - 500 W
- T Slots in Dividere Plate - 4 slots
- Hydraulic Disc Brake - 50 Bar
- Standard Positional Accuracy - +/- 110 arcsec.
- Standard Repeatability - +/- 140 arcsec.
- Positioning Accuracy - high accuracy +/- 10 arcsec.
- Standard Repeatability - high accuracy +/- 20 arcsec.

Machine Dimensions
 A (Maximum Width without Screen): 45.28"
A1 (Maximum Width with Screen): 81.89"
 B (Maximum Depth of the machine): 68.90"
 C (Maximum Height of the machine): 125.98"
C1 (Maximum Height for transportation in crate) 137.01"
 D (Screen Height from Floor): 43.1"
 E (Maximum Weight Permitted on the Table): 4,400.0 lbs (Auto); 3,300 lbs Premium
 (Machine Weight): 4,840 lbs

Main Features
Standard accuracy 110-140 arc seconds
4 Interpolated Axes simultaneously

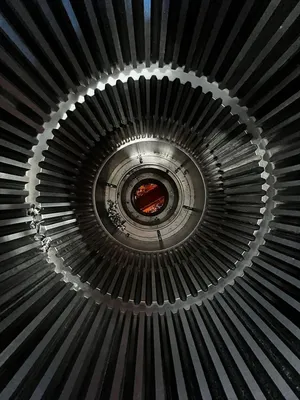

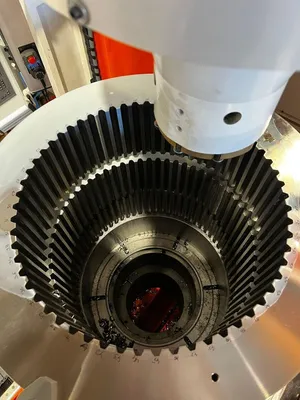

Involute Sprockets can be machined using the Fellos System
Blind cuts for keyways, grooves, and both conical & straight can be performed
100% Integration of ISO codes from CAM system through MECO Programming Assistant

Highly Recommended Options
Centering fixture spring loaded .......................................................................$709.00
Lower guide/support for long keyways (note: requires special holder for use with lower guide) .. ..........................................$1,743.00
Interchangeable inserts for lower guide ..........................................................$ 267.00

The centering fixture is highly recommended for centering on a I.D. bore during set-up. The lower guide for very long slotting. The cutters are paired with individual toolholders by size. Special for longer centers or special widths are the same price as normal cutters. Special toolholders are 35% higher. Minimum insert order is Quantity 3three (3).
