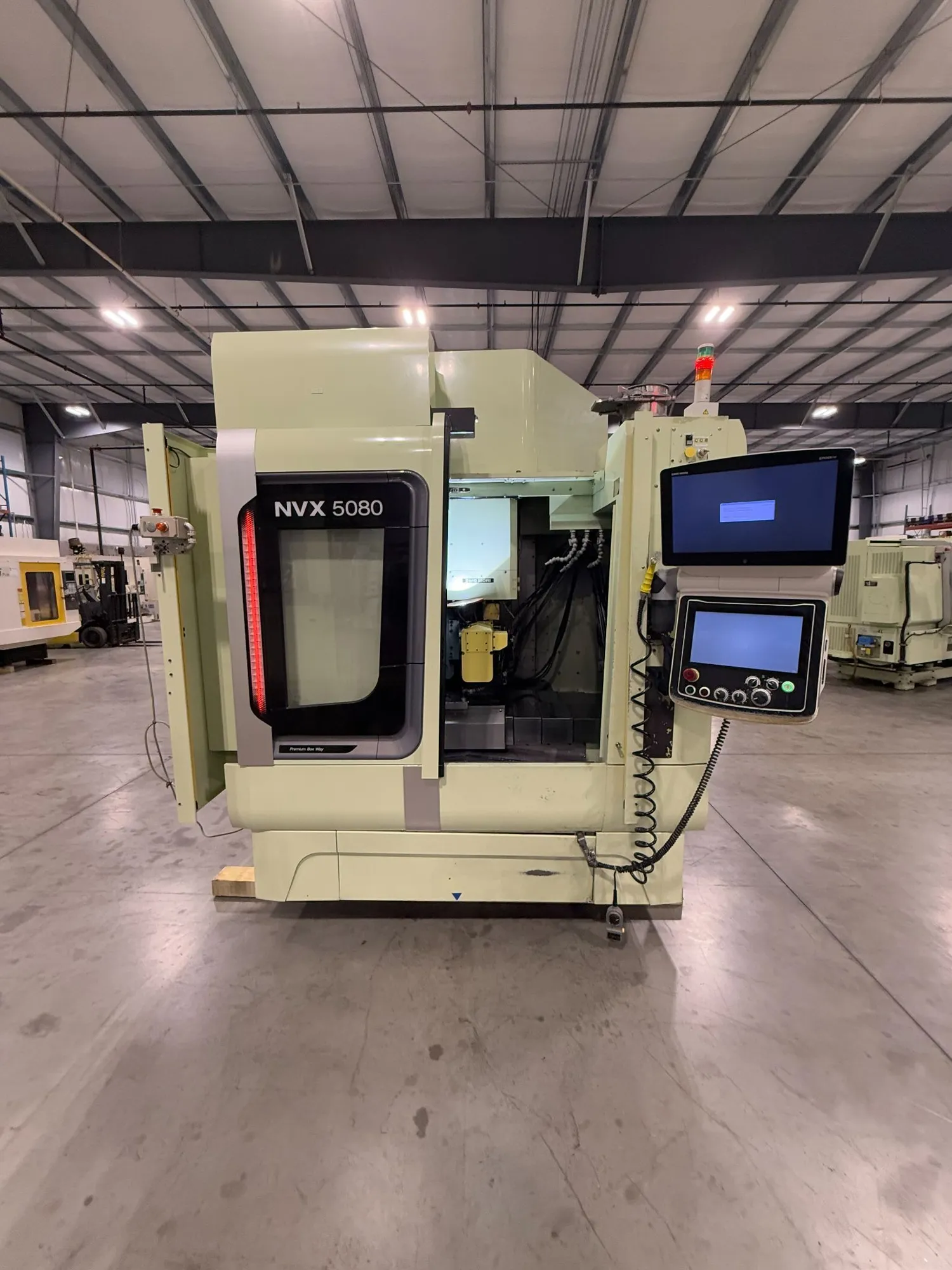

Good running machine, only ever cut cast aluminum. Can be seen under power, free loading.
| X | 31.5" | 800.1 mm |
| Y | 20.9" | 530.86 mm |
| Z | 20.1" | 510.54 mm |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 30 | 30 |
| Taper | 40 | 40 |
| Table-W | 53.1" | 1,348.7 mm |
| Table-L | 23.6" | 599.44 mm |
| # Axis | 4 | 4 |
| Control | CNC (CELOS) | CNC (CELOS) |
| Dimensions | 93" W x 108" Front To Back x 110" Tall | 93" W x 108" Front To Back x 110" Tall |
| Weight | 14800 | 14800 |
Max. workpiece length
43.3 in.
Max. workpiece width
23.6 in.
Max. workpiece height
20.1 in.
Max. workpiece weight W/O 4th Axis
2204.6 lbs.
Main Machine Dimensions- 93" W x 108" Front To Back x 110" Tall
Chip Conveyor- 93" Long x 43" W x 76" Tall
Chillers/Hydraulic Units- 3'x3'x4' QTY 3
Overall Machine Floor Space Requirement- 12' Wide x 15' Front to Back
Power Requirements-220v 3ph
Nikken CNC-260 Fourth Axis Rotary Table
Nikken TAT-105 Tail Stock W/Bearing and Brake
Mayfran Consep 2000WS Chip Conveyor
Hydraulic Fixture Clamping
Coolant Chiller
HIgh Pressure Coolant
Flood Coolant
