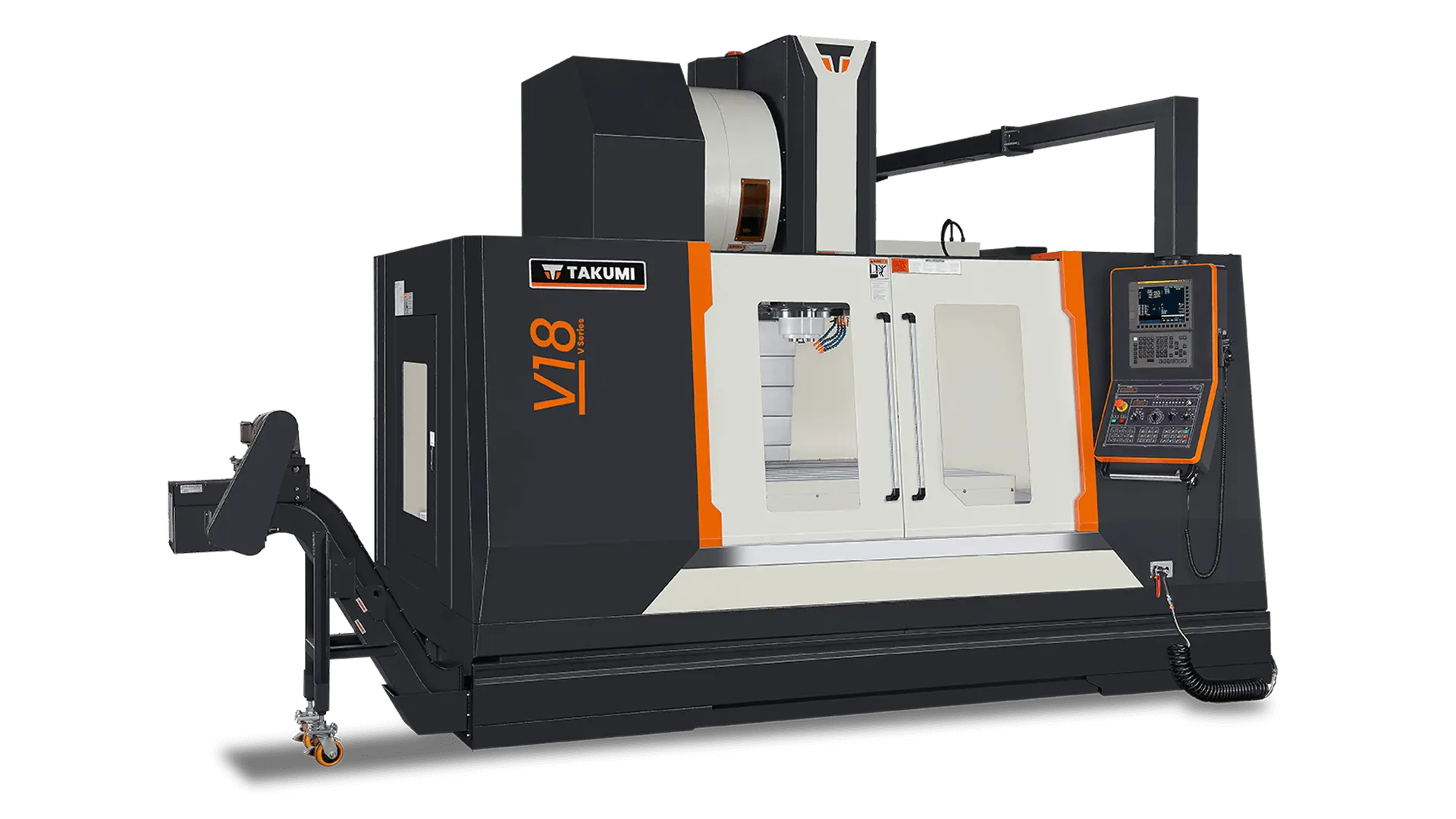

V SERIES BOX-WAY CNC
V Series vertical machining centers are heavy-duty, box-way CNC mills built for tough applications such as roughing cast iron. These 3-axis machines feature belt or geared spindles to provide maximum torque.
High-Rigidity + High-Precision Structure
Perfect combination of heavy cutting and high stability
Designed and built for heavy material removal parts and mold and die industries
Large box ways for rigid and heavy cutting
Pre-tensioned ballscrews minimize thermal growth and improve accuracy
Direct-coupled motors increase accuracy
Swiveling control panel optimizes floor space utilization
Spindle chiller maximizes heat dissipation
Extra wide door openings facilitate loading and unloading
Hand-scraped contact areas
Robust, precision-machined castings
Box-shape bed made of one-piece casting
Integrated washdown and chip management system
Absolute encoders ensure fast startup
FANUCĀ© 0i-MF Plus Series control
Fast, trained, factory service and support
X | 70.8" | 1,798.3 mm |
Y | 33.4" | 848.36 mm |
Z | 29.5" | 749.3 mm |
Power | 25 hp | 18.6 kW |
RPM | 8,000 RPM | 8,000 RPM |
# ATC | 24 | 24 |
Taper | CAT 50 | CAT 50 |
Table-W | 33.4" | 848.36 mm |
Table-L | 74.8" | 1,899.9 mm |
# Axis | 3 | 3 |
Control | CNC (FANUC 0iMF Plus) | CNC (FANUC 0iMF Plus) |
Weight | 35,274 Lbs. | 35,274 Lbs. |
TRAVEL
X-Axis - 70.8 in (1800 mm)
Y-Axis - 33.4 in (850 mm)
Z-Axis - 29.5 in (750 mm)
TABLE
Table Size - 74.8 x 33.4 in (1900 x 850 mm)
Table Max. Load 4400 lbs. (2000 kg)
T-Slot Size - 5 x .87 in on 5.91 in Centers (5 x 22 mm on 150 mm Centers)
SPINDLE
Spindle Speed - 8000 rpm
Peak Spindle Torque - 349 ft. lbs.
Spindle Taper - CAT / BT 50
FEED RATE
Cutting Feed Rate - 630 IPM x Y, 551 IPM Z / 196.9 IPM
ATC
ATC Type - Swing Arm
Magazine Capacity - 24 Tools
SPACE & SYSTEM REQUIREMENTS
Machine Net Weight - 35274 lbs (16000 kg)
Electrical Power Consumption - 50 KVA
