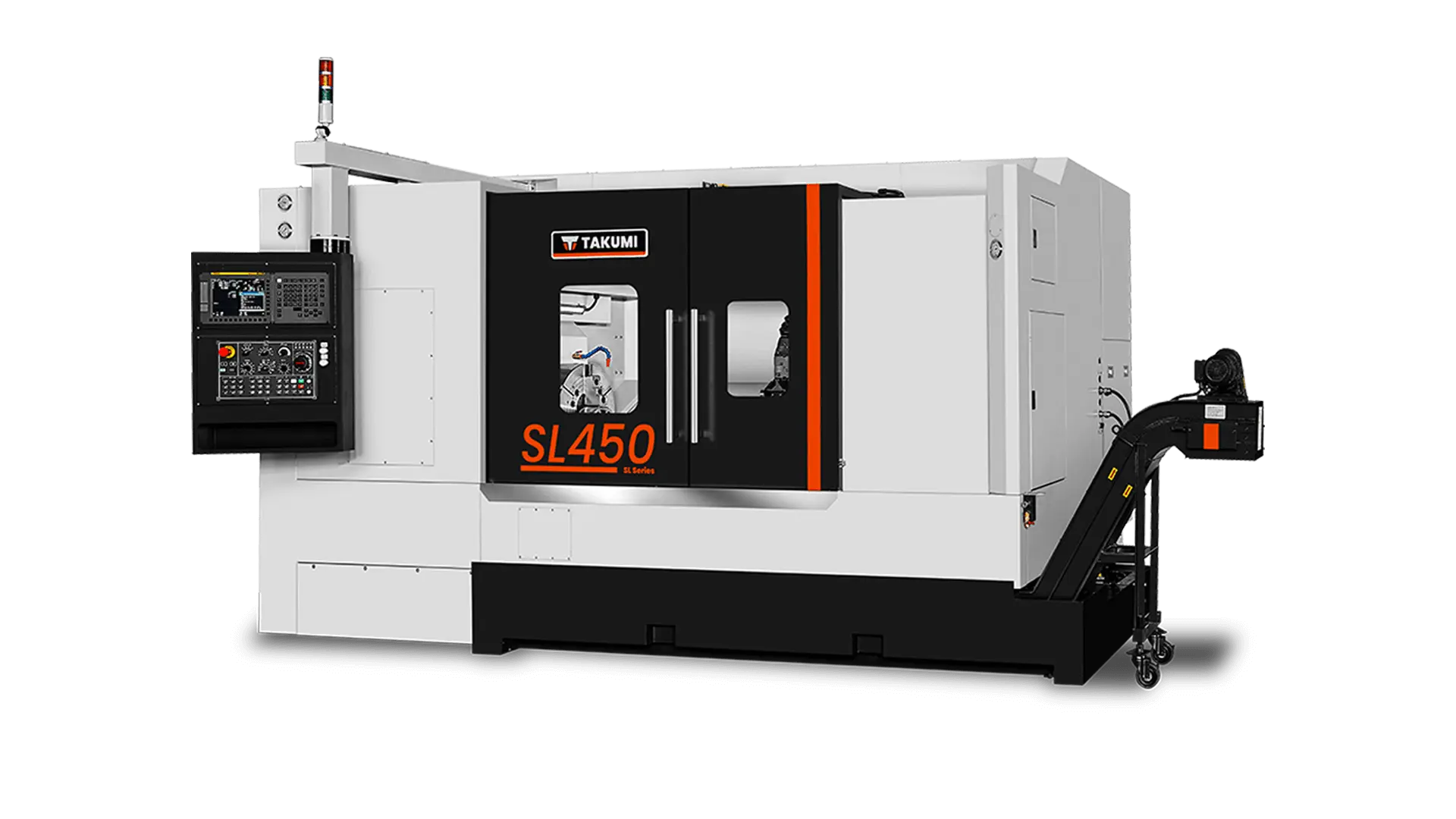

Heavy and Interrupted Cutting Lathe
At Takumi, we implement stringent design and manufacturing practices to build rigid and reliable machining centers that will exceed your productivity expectations. From our meticulous manufacturing processes, such as hand scraping contact areas, to the use of premium components, we infuse quality into each of our products.
Since 1988, Takumi has been exceeding customers’ expectations in Europe, Asia and North America. Acquired by Hurco Companies in 2015, we are ready to exceed your expectation with our nationwide comprehensive support network, based in Indianapolis, Indiana.
Like you, we believe machine reliability and proven control technology yields the greatest benefit to your business. Takumi adapts Fanuc©, the world’s leading CNC control, to a rugged and durable machine to achieve higher productivity through speed, accuracy, and reliability.
| Swing | 26.4" | 670.56 mm |
| Machining Length | 45.3" | 1,150.6 mm |
| # Axis | 2 | 2 |
| Chuck Size | 18" | 457.2 mm |
| Bar Capacity | 4.6" | 116.84 mm |
| Power | 27 hp | 20.1 kW |
| Max RPM | 2,000 RPM | 2,000 RPM |
| Turning Dia | 22.4" | 568.96 mm |
| Tailstock | Yes | Yes |
| Control | CNC (Fanuc 0i-TF) | CNC (Fanuc 0i-TF) |
| Weight | 18708 lb | 18708 lb |
X-Axis - 11.8 in (300 mm)
Z-Axis - 49.2 in (1,250 mm)
Chuck Size - 18 in (457.2 mm)
Swing Over Bed - 26.4 in (670 mm)
Maximum Turning Diameter - 22.4 in (570 mm)
Max. Turning Length - 45.3 in (1,150 mm)
Bore/Draw Tube - 1.57 / 4.6 in (40 / 117 mm) Inner Diameter
Spindle Nose - A2-11
Spindle Speed - 2000 rpm
Spindle Power - 24.8 HP (18.5 kW)
Spindle Motor Torque - 365 ft lbs (495 Nm) Peak
Rapid Traverse (X/Z) - 787 ipm (20 m/min)
Turret Stations / Size - 12 / 1 in (25 mm)
Max. Boring Bar - 1.25 in (32 mm)
Tool Change - 0.5/2 sec (Adj. / Furthest)
Positioning (VDI 3441) - +/- .0006 in (+/- .0014 mm)
Repeatability (VDI 3441) - +/- .0004 in (+/- .01 mm)
Weight - 18,708 lbs (8,100 kg)
Control - Fanuc® Oi-TF
