Capacity: 40 Ton
Bolster: 600 x 500 mm
Scrap Exit Ø: 150 mm
Slide: 500 x 200 mm
Daylight: 400 mm
Stroke: 250 mm
Aproximation speed: 190 mm/s
Pressing speed: 18mm/s
Return speed: 130 mm/s

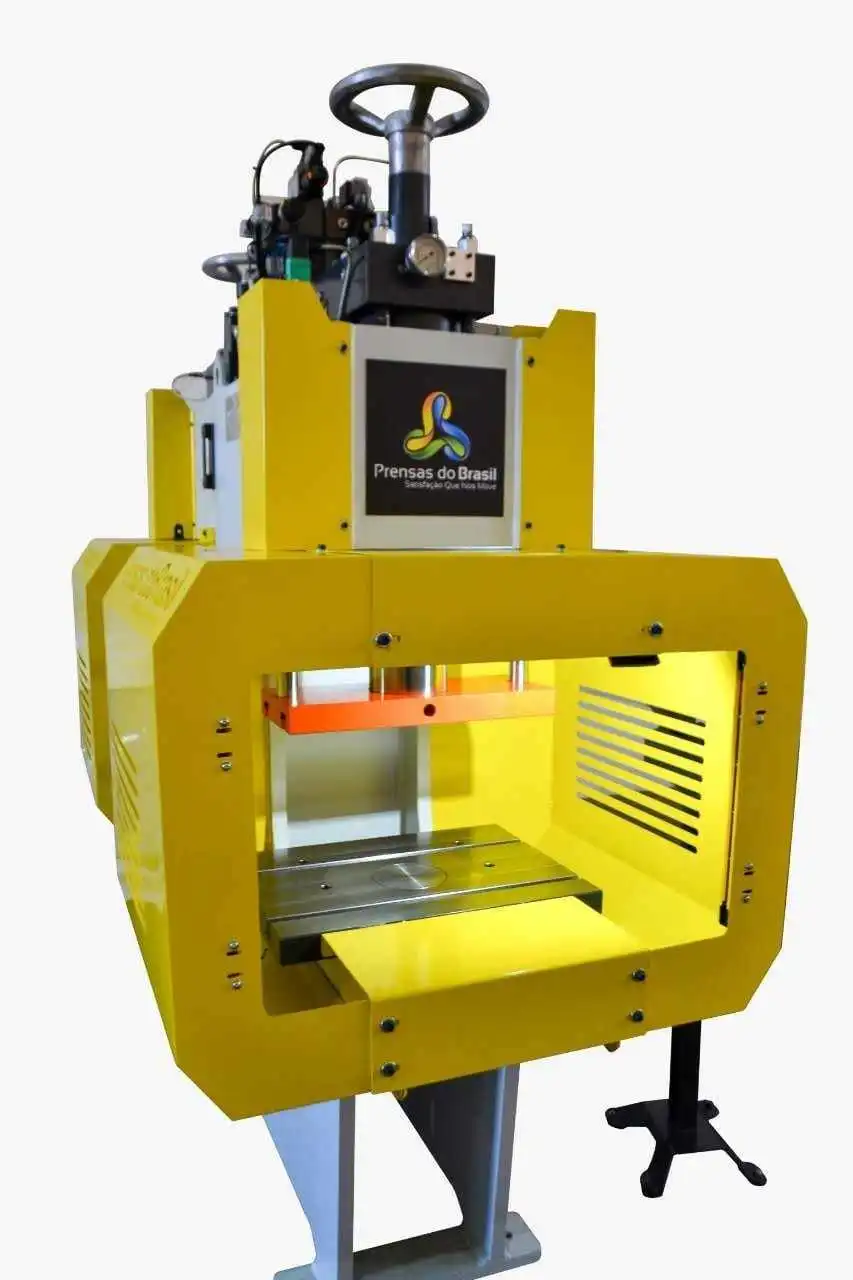

DOUBLE - SLIDED PRESS
| Tonnage | 40 T | 36.287 t |
| Stroke | 250 mm | 9.8425" |
| Daylight | 400 mm | 15.748" |
| Power | 10 hp | 7.5 kW |
| Bed W | 600 mm | 23.622" |
| Bed L | 500 mm | 19.685" |
| Weight | 2400 kgs | 2400 kgs |
Capacity: 40 Ton
Bolster: 600 x 500 mm
Scrap Exit Ø: 150 mm
Slide: 500 x 200 mm
Daylight: 400 mm
Stroke: 250 mm
Aproximation speed: 190 mm/s
Pressing speed: 18mm/s
Return speed: 130 mm/s
DOUBLE - SLIDED PRESS
